Welding Rotator: Precision Automation for Industrial Fabrication Expert FAQ Guide
Technical performance and configuration
Q1: What is the maximum bearing range of the welding roller frame? Can you customize non-standard sizes?
A1: The standard model covers 1-200 tons of load-bearing (supporting 200mm-8m diameter workpieces), provides a full range of non-standard customization (such as 300 tons of super heavy/explosion-proof type), and the output solution within 72 hours.
Q2: How to ensure the positioning accuracy of the positioner? Is it suitable for automated welding systems?
A2: Adopts military-grade servo motor + high-rigidity slewing support, repeated positioning accuracy ±0.05mm, standard Modbus protocol interface, seamless docking KUKA/FANUC and other robot systems.
Q3: What are the control methods of the operator? Is professional training required?
A3: Support manual/semi-automatic/fully automatic mode (optional teaching programming/remote control), provide 1-to-1 video guidance + Chinese operation manual (30 minutes to get started quickly).
Industry adaptation and scenario-based application
Q4: How to ensure the stability of large cylinder welding in shipbuilding?
A4: The roller frame is equipped with adaptive hydraulic aligning device, which can automatically compensate the workpiece eccentricity (maximum offset load 15%) and avoid the cylinder slip deformation. It has been used for welding of 10,000-ton freighters in XX shipyard.
Q5: Is the pipe welding positioner compatible with different pipe diameters and materials?
A5: Modular fixture design (quick-change V-type/roller bracket), suitable for carbon steel/stainless steel/titanium alloy pipe (diameter 50mm-3m), high temperature resistance up to 600℃.
Q6: Can I use a welding operator in a small space?
A6: Provide a compact column operator (minimum area 1.2m×1.5m), adjustable arm span (2-10m), to meet the workshop space constraints.
What is a Welding Rotator?
A welding roller rack is an automated device for rotating cylindrical workpieces (such as pipes, pressure vessels, storage tanks, etc.) designed to achieve uniform operation of processes such as welding, cutting or painting. Its core function is to ensure the consistency and efficiency of machining quality by precisely controlling the rotation speed and Angle of the workpiece. According to the different adjustment methods, the welding roller frame is mainly divided into two categories: Self-aligning and Conventional.
Key Advantages for Modern Manufacturing:
✅ Boost Productivity – Reduce welding cycle time by 40-60% through uninterrupted operation.
✅ Enhance Quality – Achieve consistent penetration with ±0.1° angular accuracy (ISO 3834-certified systems).
✅ Cut Operational Costs – Minimize material waste and labor fatigue via programmable speed/torque control.
✅ Adapt to Complex Needs – Customizable for load capacities (1-500T), diameters (200mm-12m), and hazardous environments (ATEX/CE compliant).
1. Self-aligning Welding Rotator
Characteristics and working principle
● Automatic alignment: real-time detection of workpiece diameter or eccentricity through hydraulic, electric or pneumatic systems, and automatic adjustment of roller spacing and height without manual intervention.
● High adaptability: Support asymmetric, tapered or large diameter workpiece (such as diameter range 200mm~12m), suitable for complex geometry welding needs.
● Intelligent control: Integrated PLC or touch screen control system, multiple sets of parameters (speed, torque, rotation direction) can be preset, and real-time load monitoring function.
Core advantage
● High accuracy: ±0.1° Angle control accuracy, reduce weld deviation.
● Efficiency: Reduced workpiece clamping time (more than 50% savings compared to the traditional type).
● Strong safety: equipped with overload protection, emergency braking and anti-slip design (such as rubber coated rollers).
Typical application
● Shipbuilding: ring joint welding of large cylinder.
● Energy industry: nuclear reactor pressure vessel, wind power tower cylinder automatic processing.
● Heavy machinery: precision welding of asymmetric workpieces such as eccentric shaft and crankshaft.
2. Conventional Welding Rotator
Characteristics and working principle
● Shipbuilding: ring joint welding of large cylinder.
● Energy industry: nuclear reactor pressure vessel, wind power tower cylinder automatic processing.
● Heavy machinery: precision welding of asymmetric workpieces such as eccentric shaft and crankshaft.
Core advantage
● Low cost: the purchase price is about 1/3 to 1/2 of the self-aligning type, suitable for small and medium-sized enterprises with limited budgets.
● Intuitive operation: no need for complex programming, low training threshold.
● Strong durability: stable mechanical structure, low failure rate.
Typical application
● Conventional pipeline welding: mass production of water treatment equipment and chemical pipelines.
● Small parts processing: regular workpieces with a diameter of less than 1m.
● Repair shop: Temporary welding tasks, scenarios requiring less flexibility.

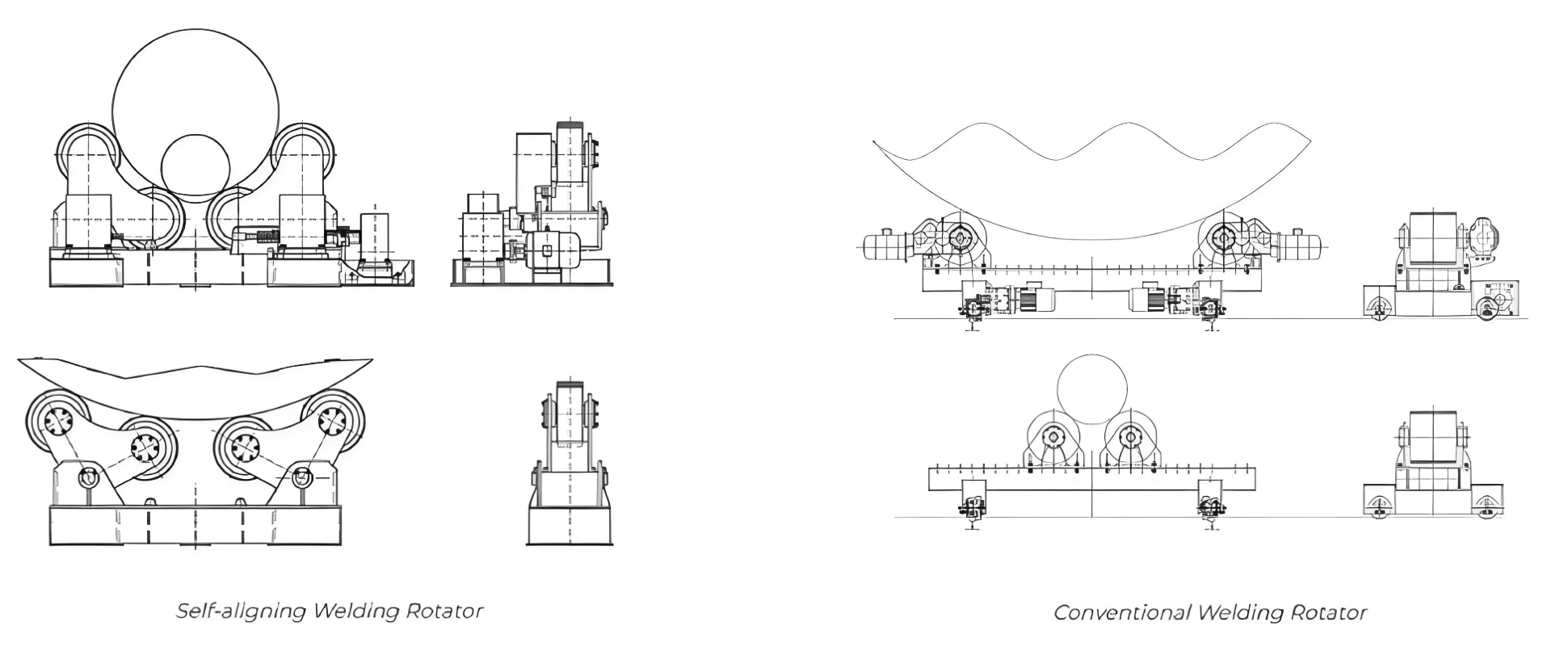

Self-aligning vs. Traditional: Key contrast
| Dimensionality | Self-aligning Welding Rotator | Conventional Welding Rotator |
| Regulation mode | Fully automatic, real-time dynamic adjustment | Manual, static fixed |
| Applicable job | Non-standard/oversized/eccentric workpieces | Rules/Small and medium standard artifacts |
| Precision control | ±0.1° (servo motor drive) | ±1~2°(ordinary motor) |
| Cost | High (innduding intelligent control system) | Low (basic mechanical structure) |
| Maintenance complexity | The sensor/hydraulic system needs to be calibrated regularly | Lubrication of mechanical parts is enough |
| Typical industry | Ships. nuclear power, aerospace | Construction. general machinery. small and medium-sized manufacturing |
Selection suggestion
● Select self-aligning type: if you need to handle high-precision, non-standard or heavy-duty workpieces, and the budget is sufficient.
● Choose traditional type: if we focus on standardized production, we will pursue low cost and high cost performance.
By defining the type of workpiece, production scale and process requirements, the most suitable type of welding roller frame can be selected to maximize production efficiency and return on investment.
Technical performance and configuration of Welding positioner
Q1: How to choose the load capacity of welding positioner? Can you handle asymmetric workpieces?
A1: The standard model covers the range from light load (10-300kg) to heavy load (0.6T-50T), and the special model supports a load of 100 tons. Self-aligning machine can automatically compensate eccentric load (15% eccentric load range) and adapt to special-shaped workpiece.
Q2: What is the rotation/tilt accuracy of the positioner? Do you support automated integration?
A2: It is driven by servo motor or stepping motor, and the repeated positioning accuracy reaches 0.05. Modbus/Profibus interface is standard, which can connect with robot systems such as KUKA and FANUC to realize automatic welding process.
Q3: Is the frequency control system stable? How to deal with different welding materials?
A3: It is equipped with industrial frequency converter, with stepless adjustable speed range of 0.1-1.2rpm, which supports low-speed and high-precision welding of aluminum, stainless steel, titanium alloy and other materials to avoid thermal deformation.
Industry adaptation and function expansion
Q4: Can it be used for welding pipeline flanges or valves? What additional accessories are needed?
A4: Special model (such as HD-600) is equipped with quick-change chuck (KD-400/500/600), which can fix flange/valve workpiece and integrate welding gun adjusting mechanism to realize girth welding.
In This Definitive Guide, You’ll Discover:
1.Technical Insights – Gear drive vs. motorized systems, load balancing, and precision calibration.
2.Industry-Specific Solutions – Optimized setups for shipyards, oil/gas pipelines, and nuclear component fabrication.
3.ROI Optimization – Cost-benefit analysis comparing manual vs. automated welding workflows.
