WPT series self-centering welding chuck
WUXI ABK WPT Series Self-Centering Welding Chuck provides precision clamping for cylindrical workpieces in automated welding applications. Featuring quick-adjust centering technology (±0.05mm accuracy), this heavy-duty chuck accommodates diameters from 50-800mm and loads up to 5 tons. The hardened steel construction ensures durability for pressure vessel and pipeline fabrication. CE-certified with 24-month warranty.
WPT series self-centering welding chuck

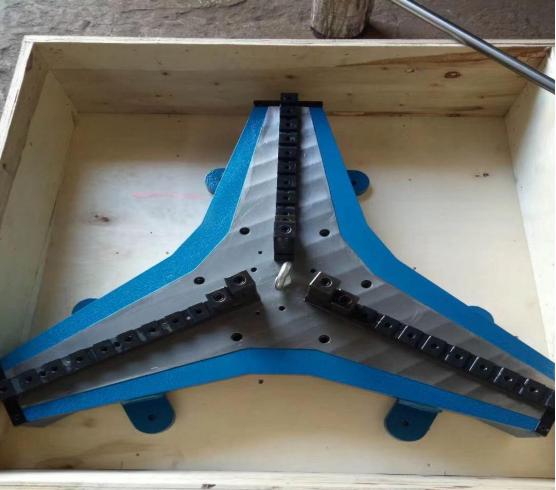

Product Introduction: WPT Series Self-Centering Welding Chuck by WUXI ABK
The WPT series self-centering welding chuck is a high-performance clamping solution designed for precision welding and cutting applications. Manufactured by WUXI ABK, a trusted name in industrial equipment, this chuck series ensures exceptional stability, accuracy, and durability in demanding production environments.
Key Features of WPT Series Self-Centering Welding Chuck
-
High Load Capacity – The WPT welding chuck is engineered to handle heavy workpieces with ease, providing robust clamping force without deformation.
-
Precision Self-Centering – Ensures automatic alignment of workpieces, reducing setup time and improving welding/cutting accuracy.
-
Smooth Operation – Designed for seamless clamping and releasing, preventing jamming even in high-cycle applications.
-
Rigid & Durable Construction – Made from high-grade materials to withstand intense welding heat and mechanical stress.
-
Versatile Compatibility – Adaptable to various welding positioners, rotary tables, and automated cutting systems.
Applications Across Industries
The WPT series chuck is widely used in industries requiring precise workpiece fixation, including:
-
Automotive Manufacturing – For welding chassis components and exhaust systems.
-
Heavy Machinery – Clamping large structural parts during fabrication.
-
Aerospace & Shipbuilding – Ensuring high-precision alignment in critical welding operations.
-
General Metal Fabrication – Ideal for robotic welding cells and CNC cutting setups.
Why Choose WUXI ABK’s WPT Series?
By integrating the WPT self-centering welding chuck into your production line, you benefit from:
-
Increased Efficiency – Faster clamping reduces downtime, boosting throughput.
-
Superior Weld Quality – Minimizes misalignment, ensuring consistent weld seams.
-
Long Service Life – Rugged design reduces wear and maintenance costs.
For industries seeking a reliable, high-performance welding chuck solution, the WPT series by WUXI ABK delivers unmatched precision and productivity. Whether used in automated welding systems or manual workstations, this chuck enhances both performance and workflow efficiency.

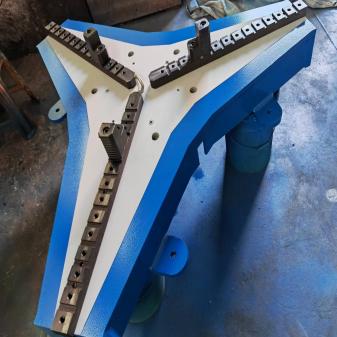

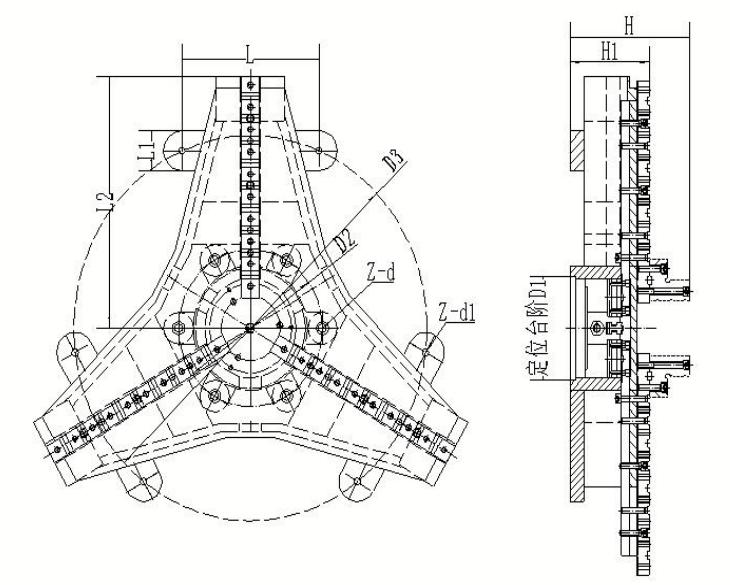

| Connection size parameters (selection reference, actual size is subject to the order drawing) | |||||||||||
| Specifications | D1(H7) | D2 | H1 | H | L2 | L1 | Z-d1 | Z-d | |||
| WPT600 | Ф205*10 | Ф275 | 175 | 260 | 345 | 60 | 6-M12×150 | ||||
| WPT1000 | Ф254*10 | Ф350 | 175 | 260 | 558 | 80 | 6-M16×150 | 6-M16×50 | |||
| WPT1200 | Ф254*10 | Ф350 | 175 | 260 | 658 | 80 | 6-M16×150 | 6-M16×50 | |||
| WPT1500 | Ф405*10 | Ф515 | 230 | 350 | 800 | 120 | 6-M20×200 | 6-M20×60 | |||
| WPT1600 | Ф405*10 | Ф515 | 230 | 350 | 850 | 120 | 6-M20×200 | 6-M20×60 | |||
| WPT1800 | Ф405*10 | Ф515 | 230 | 350 | 900 | 120 | 6-M20×200 | 6-M20×60 | |||
| WPT2000 | Ф505*10 | Ф625 | 230 | 350 | 900 | 120 | 6-M20×200 | 6-M20×60 | |||
| Performance Parameter | |||||||||||
| Specifications | Maximum input torque | Maximum clamping force | Carrying Capacity | Clamping range | Remark | ||||||
| WPT600 | 250Nm | 35KN | 1000kg | Ф100-600 | The safety factor of chuck clamping workpiece weight and clamping force is 0.1-0.2, and it is used.
The safety factor should be fully considered to avoid danger. When used in the case of overturning, the clamping bearing capacity will be weakened due to the change of the center of gravity distance. |
||||||
| WPT1000 | 300Nm | 45KN | 1500kg | Ф200-600 | |||||||
| WPT1200 | 300Nm | 45KN | 1500kg | Ф200-1200 | |||||||
| WPT1500 | 400Nm | 65KN | 2000kg | Ф300-1500 | |||||||
| WPT1600 | 500Nm | 65KN | 2000kg | Ф300-1600 | |||||||
| WPT1800 | 500Nm | 65KN | 2000kg | Ф300-1800 | |||||||
| WPT2000 | 600Nm | 70KN | 2000kg | Ф300-2000 | |||||||

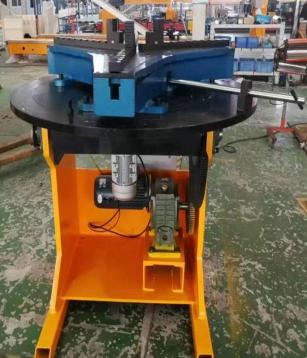

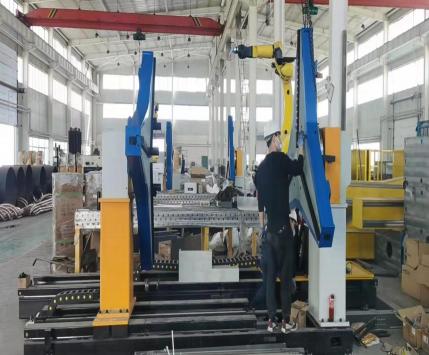

WPT series chuck with positioner use case picture
