WPS series large hole self-centering welding chuck
- E-mail :jay@weldc.com
- WA:+86 1585 2538 958
WPS series large hole self-centering welding chuck
WPS series self-centering welding chuck adopts bevel gear and coiled wire structure to drive jaws to move radially at the same time, thus realizing automatic centering of workpieces. Combining the advantages of light welding chuck and machine tool chuck, it has the advantages of high precision, large clamping force, light, convenient and flexible mechanism, no deformation and no jamming. The overall thickness of the chuck is reduced by 50%, thus reducing the center distance of the workpiece and improving the bearing capacity of the welding equipment. Improve the efficiency of welding and cutting production and meet the requirements of mass production.

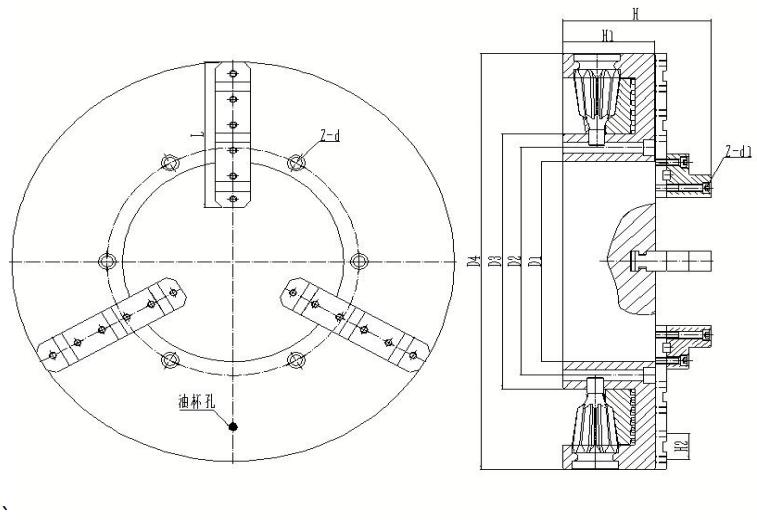

| Connection size parameters (selection reference, actual size is subject to the order drawing) | |||||||||||||
| Specifications | D1 | D2 | D3(H7) | D4 | H | H1 | H2 | L | Z-d1 | Z-d | |||
| WPS400 | Ф170 | Ф368 | Ф340 | Ф400 | 160 | 100 | 76 | 125 | 3-M16 | 6-Ф14 | |||
| WPS500 | Ф240 | Ф465 | Ф440 | Ф500 | 190 | 115 | 50 | 185 | 6-M16 | 6-Ф14 | |||
| WPS600 | Ф360 | Ф396 | Ф425 | Ф600 | 235 | 108 | 45 | 265 | 6-M12 | 6-Ф14 | |||
| WPS700 | Ф410 | Ф455 | Ф500 | Ф700 | 235 | 115 | 45 | 265 | 6-M12 | 6-Ф14 | |||
| WPS750 | Ф490 | Ф530 | Ф570 | Ф750 | 235 | 115 | 45 | 325 | 6-M12 | 6-Ф14 | |||
| WPS900 | Ф600 | Ф650 | Ф700 | Ф905 | 250 | 120 | 55 | 325 | 6-M12 | 9-Ф18 | |||
| WPS960 | Ф630 | Ф680 | Ф735 | Ф960 | 260 | 130 | 55 | 400 | 6-M16 | 9-Ф18 | |||
| WPS1200 | Ф780 | Ф890 | Ф835 | Ф1200 | 260 | 130 | 55 | 400 | 6-M16 | 9-Ф18 | |||
| WPS1300 | Ф900 | Ф955 | Ф1010 | Ф1300 | 260 | 130 | 55 | 400 | 6-M16 | 9-Ф18 | |||
| Performance Parameter | |||||||||||||
| Specifications | Maximum input torque | Maximum clamping force | Anti-claw clamping range | Positive claw clamping range | Remarks | ||||||||
| WPS400 | 300NM | 55KN | Ф120-400 | Ф120-400 | 1. The claws can be customized and lengthened, and the clamping range is correspondingly increased.
2. Customizable four-claw, six-claw and irregular multi-claw chucks. 3. The workpiece clamping position exceeds the chuck body, and the workpiece is clamped and loaded. The ability will be weakened |
||||||||
| WPS500 | 300NM | 60KN | Ф150-500 | Ф150-500 | |||||||||
| WPS600 | 400NM | 65KN | Ф150-630 | Ф250-630 | |||||||||
| WPS700/750 | 400NM | 72KN | Ф200-750 | Ф300-750 | |||||||||
| WPS900 | 400NM | 75KN | Ф200-900 | Ф400-900 | |||||||||
| WPS960 | 500NM | 80KN | Ф300-960 | Ф300-960 | |||||||||
| WPS1200 | 500NM | 90KN | Ф400-1200 | Ф400-1200 | |||||||||
| WPS1300 | 500NM | 100KN | Ф500-1300 | Ф500-1300 | |||||||||

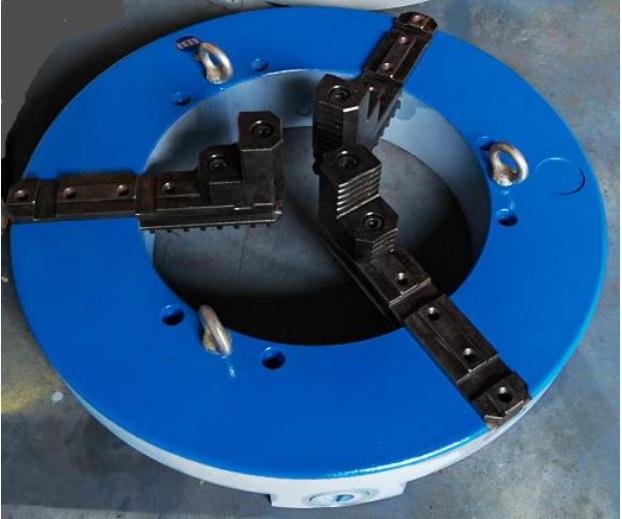

Application picture of WPS series large hole self-centering welding chuck
