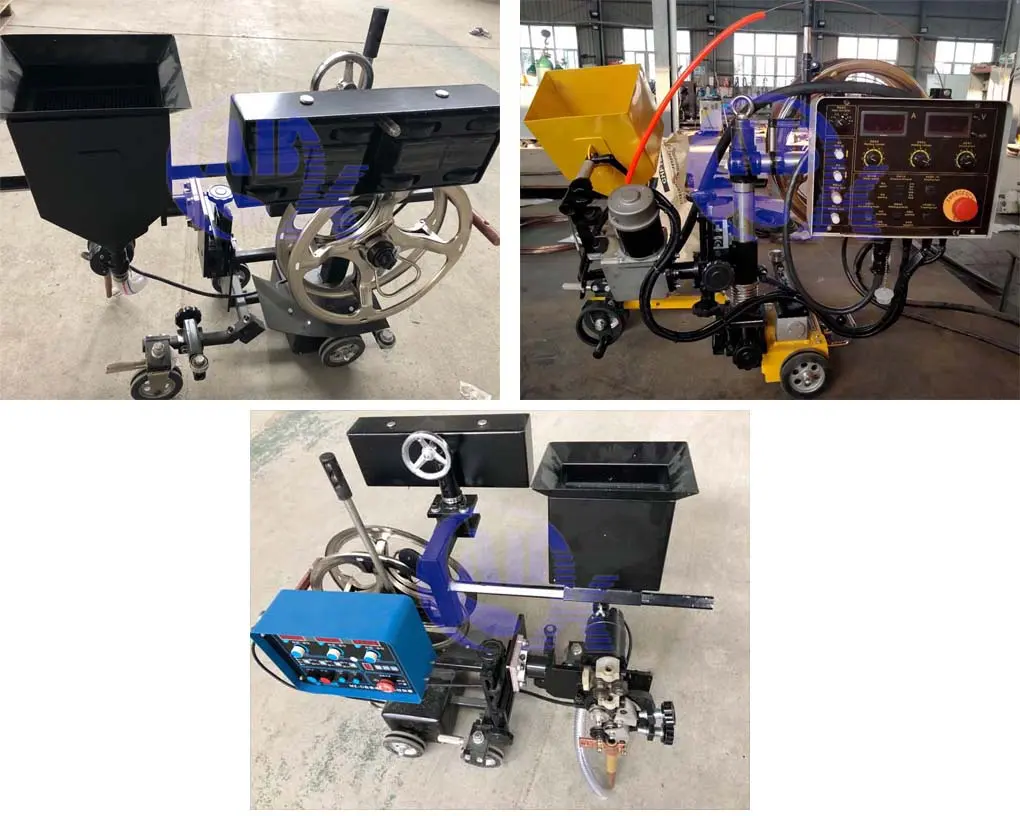

Submerged Arc Welding Tractor
As a professional manufacturer in the field of welding automation, CSAW-1000 series automatic welding system introduced by WUXI ABK is specially designed for welding large storage tanks and pressure vessels. The system adopts modular design concept, which can be flexibly configured according to different engineering requirements and meet the strict welding requirements of petrochemical, energy storage and transportation industries.
Core Advantages
The WUXI ABK CSAW-1000 Submerged Arc Welding Tractor integrates cutting-edge automation and precision control for industrial welding applications. Featuring an intelligent arc control system with closed-loop feedback, it dynamically adjusts welding parameters in real time to maintain consistent quality across varying conditions. Equipped with an original Miller® welding power supply, the system delivers superior arc stability and output performance. The quick-change mechanism enables station switching in under 15 minutes, while adaptive welding tools automatically align with joint geometries for precise, high-efficiency welding.
Magnetic Adsorption Fillet Welding System
Our patented magnetic adsorption technology generates up to 18kN holding force, specifically designed for storage tank baseplate and support foot welding. Compared to traditional fixtures, it reduces positioning time by 60% (30-second setup) and remains stable even in high-temperature environments, eliminating thermal deformation issues common with mechanical clamps.
Intelligent Mobility & Precision Drive
-
3+1 Wheel System: Combines stability (three load-bearing wheels) with agility (1.5m turning radius) for confined spaces.
-
Worm Gear Transmission: Achieves 0.1mm movement accuracy with electromagnetic clutch assistance, reducing operational resistance by 70% for smooth welding transitions.
Technical Specifications
-
Wire Diameter: 2.4–4.8mm
-
Plate Thickness: 6–50mm
-
Welding Speed: 200–900mm/min (stepless adjustment)
-
Seam Tracking Accuracy: ±0.3mm
-
Positioning: Supports flat/horizontal welding (vertical optional)
Applications
Ideal for:
✔ Storage tank fabrication (oil, chemical, LNG)
✔ Heavy structural steel welding (bridges, offshore platforms)
✔ Pressure vessel manufacturing
Quality Assurance
-
CE & ISO certified
-
Robust steel construction with heat-resistant components
-
24/7 technical support and rapid spare parts service
Technical Advantages Summary
✅ Adaptable – Multiple operation modes for varied work environments
✅ Precise – Laser-guided for accurate weld placement
✅ Robust – Heavy-duty construction for industrial applications
✅ Efficient – Quick setup and changeover between tasks
LIST:
NAME：CSAW-1000 conner auto welding machine
MODLE: CSAW-1000
LIST：CSAW-1000 type automatic submerged arc welding machine for input 380V+10%/3PH/50Hz boxer, call, floor / feet seam welding construction, single machine comprises the following components：
| NO | COMPOSITION | MANUFACTUER | QUA | REMARK | |
|
1 |
Automatic welding system | 3+1 Wheel self walking car | WUXI ABK | 1SET | CHINA |
| The torch position regulator | |||||
| Torch angle trimmer | |||||
| Flux hopper and lower material component | |||||
| Infrared laser welding device | |||||
| In / outside gap magnetic adsorption three piece | |||||
|
2 |
WELDING SYSTEM |
DC1000 LINCOLN | USA
LINCOLN |
1SET | Original |
| NA3 FEEDER | |||||
| NA3 CONTROLLER | |||||
|
3 |
CABLE |
WELDING CABLE（150mm2 x 60m x1） | 1SET | ||
| CONTROL CABLE（2.5 mm2 x 10p x60m x 1） | |||||
| ERATH（150mm2 x 5m x 1） | |||||
| POWER CABLE（4mm2 x3p x60m x 1） | |||||
| QUICK CONNECTOR | |||||
|
4 |
POWER RACK |
CABINET | WUXI ABK | 1SET | |
| WELDING POWER FRAME | |||||
| 5 | TOOLS | TOOLS | WUXI ABK | 1SET | CHINA |
