Special Welding Rotator
WUXI ABK Special Welding Rotator delivers precision rotation for complex welding applications. Featuring 360° continuous rotation and ±0.5° accuracy, this heavy-duty positioner handles 5-50 ton loads. Ideal for pressure vessel fabrication and structural steel welding, it includes PLC controls and anti-slip rollers. CE/ISO certified with 24-month warranty.
Special Welding Rotator | Heavy-Duty 360° Positioning | Customizable for Industrial Welding Precise rotation (0.1 mm) | Super load (50t) | Intelligent control (PLC/HMI)
Core parameter list
| Parameter term | Technical specifications |
| Loading capacity | 5-50 tons (Can be customized) |
| Rotational accuracy | ±0.1mm/m(Laser calibration) |
| Speed range | 0.05-2 RPM(Stepless speed regulation) |
| Drive system | Double servo motor+planetary reducer |
| Applicable workpiece diameter | 300mm-10m(Support non-standard design) |
| Power requirement | 380V/50Hz(Optional explosion-proof motor) |
| Control mode | Touch screen PLC (preset 20 welding programs) |
✅ Precise rotation (±0.1 mm) | ✅ Super load (50T) | ✅ Intelligent control (PLC/HMI)
High rigidity structure
Box-shaped steel frame+polyurethane anti-skid roller, the deformation resistance is improved by 40%

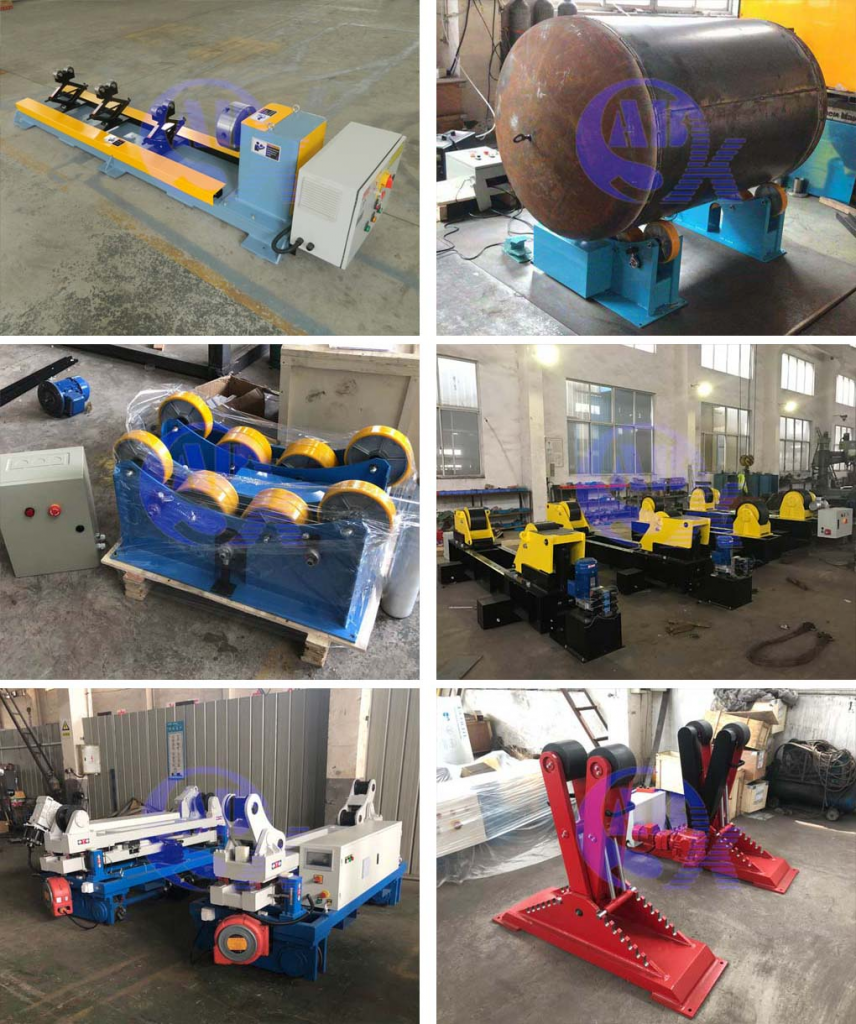

To better meet customer needs, we offer a range of specialized welding rotators including PU wheel rotators, hydraulic lift rotators, and fit-up rotators. These machines are ideal for pipelines, wind towers, pressure vessels, and small pipes.
We also provide custom design and manufacturing services to accommodate specific project requirements.
Motor & Maintenance Guidelines
The WUXI ABK Special Welding Rotator is engineered for heavy-duty industrial applications, including pressure vessel fabrication, wind tower production, and shipbuilding. Before operation, clean the rotator thoroughly and protect the high-strength rubber rollers from oil and high temperatures to prevent premature aging. A trained operator should handle maintenance to ensure optimal performance.
Lubrication & Care
-
Fill the precision speed reducer with 30# engine oil before startup (use winter-grade oil below 0°C).
-
Replace oil after the first 30 days, then every 500 operating hours or 6 months.
-
Never use the roller bed as a welding ground to avoid bearing damage—always use dedicated grounding clamps.
Why Choose WUXI ABK?
With 20+ years of expertise in self-aligning rotators, we deliver:
✓ 5-400 ton load capacity for industrial welding automation
✓ CE & ISO certified designs, compliant with global safety standards
✓ 1-year warranty with free wear parts replacement
✓ 24/7 technical support for wind turbine welding, offshore construction, and large-scale fabrication
Wuxi ABK Machinery Co.Ltd is a professional manufacturer of welding rotator in China. And our welding rotator mainly includes standard welding rotator, adjustable welding rotator, and special welding rotator. We can also provide our clients around the world with many other products including welding turntable, pile welding machine, wind tower production line, H beam welding line, pipe welding equipment, CNC cutting machine, grinding machine, roll forming machine, plate bending machine, etc. We have obtained ISO and CE certification, and we also offer OEM service.
