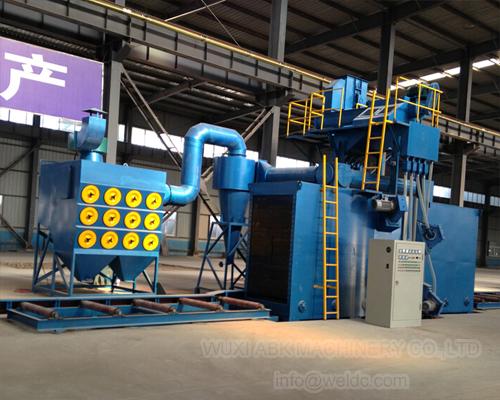

Shot Blasting Machine
This roller pass-through shot blasting machine adopts fully automatic design, which is specially developed for surface treatment of metal components such as H-beam, steel plate and steel pipe. The equipment integrates shot blasting cleaning, derusting and surface strengthening, which can significantly improve the adhesion of workpiece painting and is an ideal choice for steel structure manufacturing industry.
- E-mail :jay@weldc.com
- WA:+86 1585 2538 958
Description:

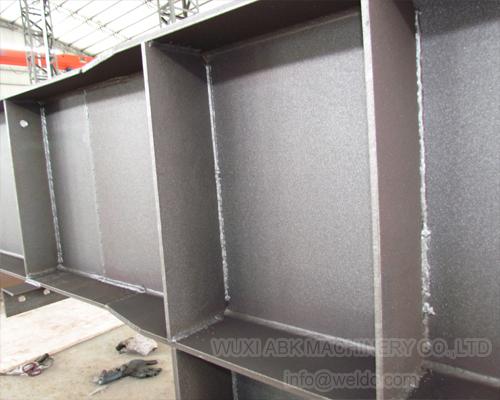

This shot-blasting machine using rolling path can continuously operate. It is a kind of automatic ball blasting device. This machine is mainly used in clearing the rust oxidized shin of H-beam, steel plate, steel pipeline. And it can smooth the beam surface and makes the steel easy to paint.
Our sand blasting machine can transports the work piece by trolley in double way, which makes the machine in the high efficiency. In addition, the sand blasting machine uses chromic steel plate that can protects the machine and can extent the using time.
Core technical characteristics
✅ Efficient continuous operation system
The design of two-way conveying trolley improves the processing efficiency by 40%.
The processing speed is 0.5-5m/min, which is infinitely adjustable.
24-hour continuous working ability
✅ High quality protective structure
Wear-resistant steel plate lined with 16mm chromium alloy
Triple protection design of key parts
The service life of the equipment is extended to more than 10 years.
✅ Intelligent shot blasting control
Frequency conversion to adjust shot blasting quantity
Automatic pellet circulation sorting system
Dust removal efficiency ≥99.5%
Main Technical Parameter:
| Model | HP0816 | HP1018 | HP1220 | |
| Dimension of Work-piece to be Cleaned | Allowable passing section (width×heigth) | 800×1600mm | 1000×1800mm | 1200×2000mm |
| Length of workpiece | 16000mm | 16000mm | 16000mm | |
| Quality Standard | Clearness of surface | A-B Sa2-Sa2.5 | ||
| Roughness of surface | 15-20um | |||
| Production Efficiency(Travel Speed of Workpiece | 0.4-2.5m/min | 0.4-2.5m/min | 0.4-2.5m/min | |
| Abrator | Model | Q034 | Q034 | Q034 |
| Quantify | 8 | 8 | 8 | |
| Abrator Capacity | 8×250kg/min | 8×250kg/min | 8×250kg/min | |
| Power | 8×11kw | 8×11kw | 8×15kw | |
| Circulation Capacity of Material for Abrator | 100t/h | 110t/h | 120t/h | |
| Roller Path for Import/Output | Allowable Load | 1000kg/m | 1000kg/m | 1000/kg/m |
| Conveying Speed | 0.4-4m/min | 0.4-4m/min | 0.4-4m/min | |
| Initiate Adding Quantity of Material for Abrator | 5000kg | 6000kg | 8000kg | |
| Anti-dust System | Treated Wind Volume | 16000m³/h | 16000m³/h | 16000m³/h |
| Power | 15kw | 15kw | 22kw | |
| Total Power | About140kw | About140kw | 172kw | |
Application area

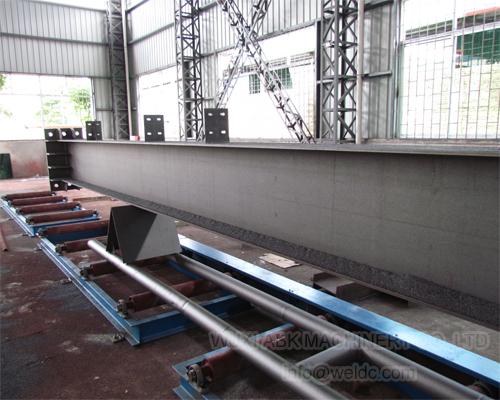

- H-beam pretreatment
- Steel plate surface cleaning
- Anti-corrosion treatment of pipeline
- Pretreatment of steel structure painting
Global service network
As a professional shot blasting equipment manufacturer, ABK’s products have been successfully applied to:
- Middle East: Saudi Arabia
- Europe and Asia: Russia, Central Asia
- Asia Pacific: Southeast Asia, Australia
- Europe and America: Germany, America and other 30+ countries.
Quality assurance
◇ 12-month core component warranty
◇ Ce certification
◇ ISO9001 quality management system
Optional configuration
▸ Automatic feeding system
▸ Visual inspection system
▸ Environmental protection dust removal system
▸ Remote monitoring system
Successful case
This equipment has been successfully applied to：
Bridge U-rib welding production line
Box beam production line
Cold bending forming line of steel structure
Numerical control water jet cutting supporting system
Note: Personalized customization is supported, and you are welcome to inquire about the specific technical scheme.
[Product model: SBM-2024Pro]
[Warranty period: 12 months]
[Delivery cycle: 90 days]
