Portable Water Jet Cutting Machine
WUXI ABK Portable Water Jet Cutting Machine delivers precision cold cutting with 6000bar ultra-high pressure, creating 1-1.5mm kerf width without heat distortion. Featuring ATEX explosion-proof certification and 90% water recycling, this eco-friendly solution is ideal for aerospace, automotive and metal fabrication. The modular design reduces maintenance costs by 50%. ISO9001 & CE certified.
WUXI ABK Portable Water Jet Cutting Machine – Industrial-Grade Cutting Solution
Product Overview
The WUXI ABK Portable Water Jet Cutting Machine revolutionizes industrial cutting operations with its advanced ultra-high pressure water jet technology. This compact yet powerful system combines a high-pressure pumping unit with a precision CNC cutting platform, delivering unmatched versatility for processing both soft and hard materials. Unlike traditional stationary water jet cutters, our portable design enables rapid deployment across multiple job sites while maintaining professional-grade cutting performance.
Cutting Capabilities
Our water jet cutting equipment operates in two distinct modes to handle diverse material requirements:
-
Pure Water Mode (for soft materials): Effortlessly cuts through 300mm rubber or 150mm composite materials without thermal distortion
-
Abrasive Mode (for hard materials): Utilizes 80-mesh garnet abrasive to slice through 50mm stainless steel or 100mm stone at 0.5kg/min consumption
Technical Highlights
The system incorporates several industry-leading features:

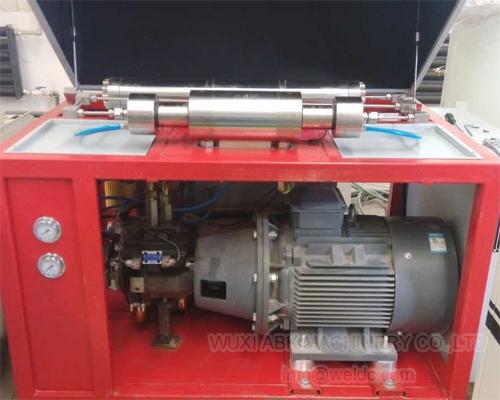

✓ KMT booster technology generating 6000bar cutting pressure
✓ Compact footprint (800×600×1200mm) with lightweight design (<150kg) for easy transport
✓ IP65-rated CNC system with wireless remote control (10m range)
✓ Real-time pressure monitoring (±50bar accuracy) for consistent cut quality
✓ Dual-operator setup allowing quick relocation between work areas

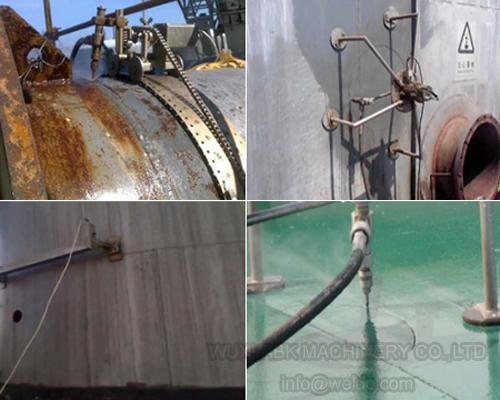

Industrial Applications
This portable cutting machine excels in critical sectors:
-
Oil & Gas: Safe cutting of live pipelines (including natural gas lines) with no ignition risk
-
Marine Engineering: Precise modification of offshore platform components
-
Chemical Plants: Cold cutting of hazardous material containers
-
Waste Processing: Dismantling of tanker trucks and scrap metal
-
Precision Manufacturing: Processing of stainless steel, titanium alloys, and specialty composites
Safety & Efficiency Advantages
The WUXI ABK water jet cutter provides numerous operational benefits:
-
No heat-affected zones – preserves material properties
-
Environmentally friendly – produces no toxic fumes
-
Multi-material compatibility – from polymers to hardened metals
-
Rapid setup – operational within 15 minutes of arrival
Industry application scenario
| Application area | Typical case | Technical superiority |
| Oil and gas pipeline | Emergency cutting of pipeline under pressure | No spark/explosion proof certification |
| Chemical equipment | Disassembly of abandoned storage tanks | No toxic gas is generated |
| Municipal engineering | Reconstruction of underground pipe network | Narrow space operation |
| Military aerospace | Dumb bomb processing | Cold safe cutting |
| Artistic creation | Marble sculpture | Complex curve machining |
Performance parameter
| Project | Technical indicators |
| Working pressure | 3800-6000bar（Adjustable） |
| Cutting accuracy | ±0.2mm（XY plane） |
| Rate of travel | 0.1-5m/min（Stepless speed regulation） |
| Power demand | 380V/50Hz or diesel generator drive |
| Water consumption | 4L/min(with recovery system) |
| Noise level | ≤78dB（Measured at a distance of 1 meter） |
Cutting Parameter
| Material | Thickness(mm) | Cutting Speed (300Mpa System) (mm/min) | Cutting Speed(380Mpa System)(mm/min) | Cutting Speed(420Mpa System)(mm/min) |
| Normal Glass | 6 | 1100 – 1200 | 1400-1500 | 2100-2250 |
| 10 | 480-600 | 690-800 | 1035-1200 | |
| 19 | 290-350 | 400-500 | 600-750 | |
| Granite Panel | 20 | 200-250 | 260-300 | 390-450 |
| 30 | 120-150 | 170-200 | 255-300 | |
| Porcelain Tile | 10 | 610-700 | 900-1000 | 1350-1500 |
| Marble Panel | 10 | 500-700 | 600-900 | 900-1350 |
| 20 | 260-300 | 350-400 | 525-600 | |
| 30 | 170-200 | 260-300 | 390-450 | |
| Laminating Glass | 21 | 310-400 | 490-600 | 735-900 |
| Sponge & Foam | 20 | 4000-5000 | 6000-7000 | 9000-10500 |
| 50 | 1500-2000 | 2600-3000 | 3900-4500 | |
| 80 | 1300-1500 | 1600-2000 | 2400-3000 | |
| Steel Plate | 10 | 150-180 | 170-220 | 255-330 |
| 20 | 55-80 | 75-100 | 113-150 | |
| 30 | 13-20 | 15-30 | 22-45 | |
| Stainless Steel Plate | 1 | 700-900 | 1000-1200 | 1500-1800 |
| 3 | 300-400 | 500-600 | 750-900 | |
| 6 | 180-220 | 240-300 | 360-450 | |
| 10 | 80-100 | 150-180 | 225-270 | |
| 16 | 70-85 | 85-100 | 128-150 | |
| 20 | 50-60 | 70-80 | 105-120 | |
| 30 | 20-25 | 30-40 | 45-60 | |
| Copper Plate | 3 | 850-1000 | 1350-1500 | 2025-2250 |
| 5 | 360-500 | 700-850 | 1050-1275 | |
| 20 | 80-100 | 160-200 | 240-300 | |
| 30 | 50-60 | 100-120 | 150-180 | |
| Titanium Alloy | 13 | 50-60 | 100-115 | 150-173 |
Wuxi ABK Machinery Co., Ltd. is a leading innovator in CNC cutting equipment, specializing in high-performance water jet cutting systems. Our Portable Water Jet Cutting Machine combines cutting-edge technology with superior safety, efficiency, and environmental sustainability, making it an ideal choice for industries requiring precision metalworking solutions.
Core Advantages of Portable Water Jet Cutting Machine
1. Outstanding Safety Performance
-
ATEX Explosion-Proof Certification (Zone 1 Compliance) – Ensures safe operation in hazardous environments.
-
Low Cutting Temperature (<60℃) – Eliminates heat-affected zones (HAZ), preventing material deformation.
-
Emergency Pressure Relief System (<1s Response Time) – Enhances operator safety with instant pressure release.
2. Significant Economic Benefits
-
Ultra-Narrow Kerf Width (1.0-1.5mm) – Reduces material waste by 15-20%, optimizing cost efficiency.
-
Multi-Layer Cutting Capability (Up to 5 Layers of 2mm Stainless Steel) – Improves productivity in batch processing.
-
Modular Design – Cuts maintenance costs by 50%, ensuring long-term reliability.
3. Eco-Friendly Operation
-
High Water Circulation Rate (>90% Utilization) – Minimizes water consumption.
-
Optional Abrasive Recovery System – Reduces abrasive waste, lowering operational costs.
-
Zero VOC Emissions – Supports green manufacturing initiatives.
Key Factors Affecting Cutting Performance
The cutting surface quality and speed depend on:
-
Water pressure stability – Ensures consistent cutting precision.
-
Abrasive quality & flow rate – Impacts cutting efficiency and edge smoothness.
-
Nozzle & orifice diameter – Influences kerf width and cutting force distribution.
Due to the high-pressure water jet’s dynamic nature, the effective cutting diameter varies slightly, with typical kerf widths of 1-1.5mm and hole diameters of 1.5-2.0mm, depending on material thickness.
Wuxi ABK Machinery – Your Trusted Partner in Intelligent Manufacturing
As a premier CNC cutting machine manufacturer, ABK Machinery delivers industrial 4.0 smart production solutions, covering laser cutting, plasma cutting, and ultra-high-pressure water jet systems (6000bar).
Core Product Series
✔ Intelligent Cutting Systems
-
CNC Plasma Cutting Machine – Fine plasma for high-precision grooves (up to 50mm thickness).
-
Ultra-High Pressure Water Jet Cutting System – Ideal for composite materials & heat-sensitive metals.
-
Laser Cutting Workstation – Fiber & CO₂ lasers for high-speed, precision sheet metal processing.
✔ Automated Welding Solutions
-
Wind Tower Welding Line – 85% automation rate for energy sector applications.
-
H-Beam Welding Production Line – Full-automatic assembly for structural steel fabrication.
-
Pipe Welding Equipment – Ensures high-quality joints for oil & gas pipelines.
✔ Advanced Forming Equipment
-
CNC Plate Bending Machine – Precision shaping for heavy-duty metal fabrication.
-
Roll Forming Production Line – Custom profiles for construction & automotive industries.
-
Surface Grinding Machines – Enhances workpiece finish accuracy.
Global Recognition & Technical Excellence
-
International Certifications: ISO9001, CE, PED.
-
OEM/ODM Support – Tailored solutions for diverse industrial needs.
-
R&D Investment – 8% of annual revenue dedicated to cutting-edge CNC technology.
Our welding rotators, CNC cutting machines, and bending equipment serve 35+ countries, including Germany (automotive), Brazil (energy), and India (infrastructure).
Choose ABK Machinery for Precision, Innovation & Reliability in Water Jet Cutting & Beyond!
