Panel Bending Machine

Key Features & Benefits

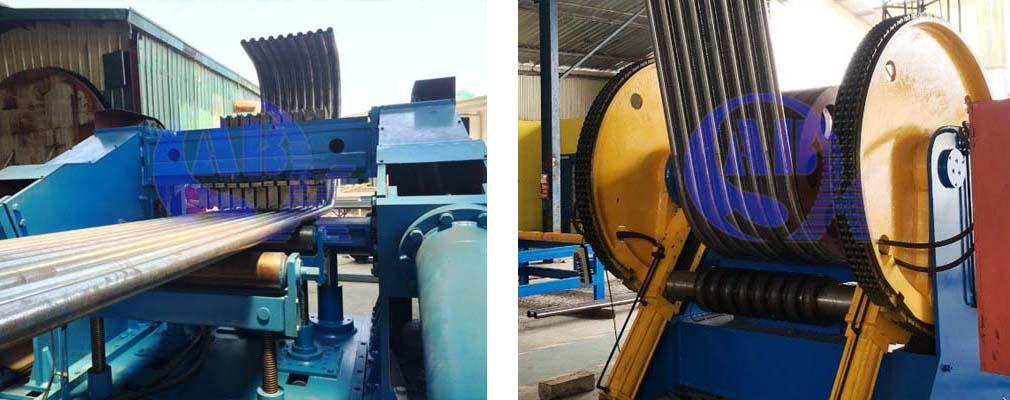

Panel Bending Machine Product Introduction

1. Flexible Configuration Options for Diverse Industrial Needs
Our panel bending machines are engineered with versatile drive systems to accommodate various production requirements. The electro-mechanical servo-driven system delivers exceptional precision for complex bends, while the hydraulic drive system provides high-torque performance for heavy-duty forming applications. With a maximum tube capacity of Ø89mm and support for wall thicknesses up to 8mm, our machines handle a wide range of materials, ensuring adaptability across industries.

2. Customizable Design Parameters for Precision Bending
Every panel bending machine from our lineup allows for fine-tuned adjustments to meet exact project specifications. Key parameters include:

• Bend Radius: Adjustable from 1xD to 5xD (tube diameter) with a tight tolerance of ±0.5°, ensuring consistent curvature.

• Panel Width: Supports 300–2500mm panels with a ±1mm/m accuracy, ideal for large-scale fabrication.

• Bend Angle: Capable of 0–180° bends with a ±0.3° precision, perfect for intricate architectural and industrial designs.

3. Operational Advantages Enhancing Productivity
Our panel bending machines are designed for efficiency and ease of use:

• One-Operator Control: The simplified HMI interface reduces training time and minimizes human error.

• Tool-Free Adjustment: The quick-change die system allows for rapid setup transitions, maximizing uptime.

• Energy Efficient: Consumes 30% less power compared to conventional bending machines, lowering operational costs.

4. Technical Specifications for Performance-Driven Applications
We offer two high-performance models to suit different production demands:

• ZZ-60M (Mechanical): Delivers 60-ton max force with a 15kW motor, achieving a bend speed of 5–15°/sec. Weighing 3,200kg, it’s ideal for mid-range industrial bending.

• ZZ-90H (Hydraulic): Provides 90-ton max force powered by a 22kW motor, operating at 3–10°/sec. With a 4,800kg frame, it excels in heavy-duty forming.

5. Key Applications Across Industries
Our panel bending machines are widely used in:

• Boiler membrane walls and heat exchanger panels for energy plants.

• Shipbuilding bulkheads requiring high-strength curved panels.

• Architectural curved facades for modern construction projects.

6. Custom Engineering Services for Specialized Requirements
Beyond standard models, we provide tailored panel bending solutions, including:

• Special alloy forming (Inconel, Titanium) for aerospace and chemical industries.

• Automated loading/unloading systems to streamline high-volume production.

• Seamless integration with existing CNC or robotic production lines.

With advanced panel bending technology, precision engineering, and customizable options, our machines ensure superior performance for metal fabrication, industrial bending, and architectural metalworking. Whether for heavy-duty forming or intricate designs, our solutions deliver unmatched reliability and efficiency.

Why Choose ZZ Panel Benders?
◼ ISO 9001 & CE Certified
◼ 20+ Years of Tube Bending Expertise
◼ Onsite Training & Commissioning

Wuxi ABK Machinery Co.Ltd is a professional manufacturer of welding rotator in China. And our welding rotator mainly includes standard welding rotator, adjustable welding rotator, and special welding rotator. We can also provide our clients around the world with many other products including welding turntable, pile welding machine, wind tower production line, H beam welding line, pipe welding equipment, CNC cutting machine, grinding machine, roll forming machine, plate bending machine, etc. We have obtained ISO and CE certification, and we also offer OEM service.
