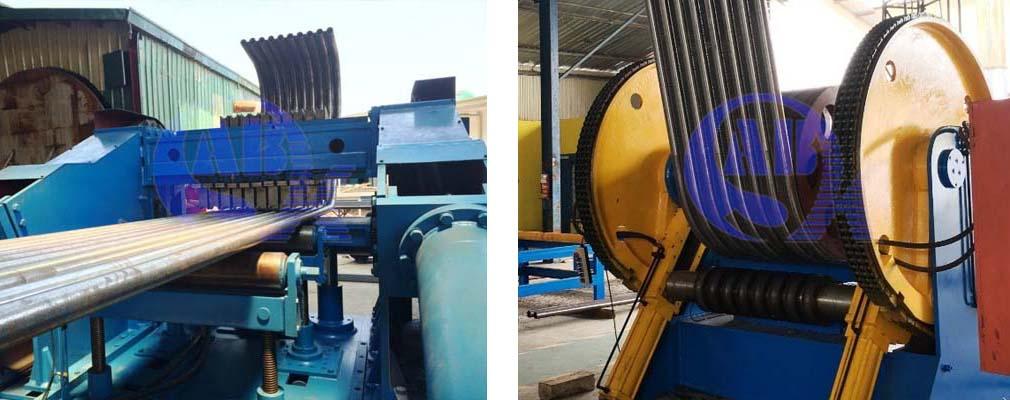

Fin-Bar Calibration Machine
WUXI ABK’s Fin-Bar Calibration Machine delivers exceptional bending performance through innovative servo and hydraulic drive technologies. This precision-engineered system combines intelligent process control with robust construction to handle demanding industrial applications, from structural steel fabrication to specialized component manufacturing. With its user-friendly interface and customizable tooling options, the machine ensures reliable, high-quality results while optimizing production efficiency across various material types and thicknesses.
Core Technological Innovations & Drive Systems
The Fin-Bar Calibration Machine features a multi-drive system configuration, including electric servo drive (standard version) and hydraulic drive (heavy-duty version), catering to diverse industrial needs.
-
Electric Servo Drive (Standard Version):
-
Equipped with Siemens 1FT7 servo motors for high-precision bending (±0.1° positioning accuracy).
-
40% higher energy efficiency compared to traditional hydraulic systems.
-
Ideal for applications requiring fast response and repeatability.
-
-
Hydraulic Drive (Heavy-Duty Version):
-
Powered by Rexroth hydraulic system (21MPa working pressure).
-
Delivers maximum bending torque of 300kN·m, suitable for high-strength steel and special alloys.
-
Ensures stability and durability in heavy-load operations.
-
Intelligent Control & Real-Time Monitoring
The machine integrates a 4-inch HMI touchscreen with an extensive material database (100+ preset bending parameters) for quick setup. Real-time monitoring includes:
-
Bending angle (actual/set value)
-
Forming speed
-
System pressure
Advanced algorithms optimize performance, achieving ±0.5° accuracy (electric) and ±0.3° (hydraulic).
Technical Specifications & Customization
| Parameter | Electric Standard | Hydraulic Heavy-Duty |
|---|---|---|
| Max. Pipe Diameter | 60mm | 89mm |
| Panel Width | 300-2000mm | 500-3000mm |
| Bending Angle | 0-180° (adjustable) | 0-190° (over-bend comp.) |
| Speed | 3-15°/s | 1-10°/s |
| Motor Power | 15kW | 22kW |
Modular Tooling System:
-
Standard dies (R50/R100/R150)
-
Special alloy dies (titanium/nickel-based)
-
Quick die-change system (<5 minutes)
Optional Upgrades:
-
Laser rangefinder for real-time wall thickness monitoring.
-
Auto-feeding mechanism (12m/min max.) for high productivity.
-
End pre-bending unit to eliminate straight edges.
Industry Applications & Advantages
-
Boiler Manufacturing:
-
Bends membrane walls seamlessly, eliminating weld joints.
-
-
Chemical Equipment:
-
Ensures precise heat exchanger tube spacing for optimal thermal transfer.
-
-
Shipbuilding:
-
Processes stern tube brackets with minimal thermal distortion.
-
-
Architectural Steel:
-
Forms curtain wall frames with ±0.3mm surface accuracy.
-
Quality Assurance & Certifications
-
FEA-optimized structure for long-term reliability.
-
Spindle bearing lifespan exceeds 1 million cycles.
-
36-month warranty on mechanical components.
-
Optional CE, PED, ASME certifications for global compliance.
The Fin-Bar Calibration Machine combines high-precision bending, smart control, and multi-drive flexibility to deliver efficient, energy-saving tube and profile forming solutions.
