CNC Water Jet Cutting Machine
ABK-P series CNC plasma cutting machine is a precision cutting system specially designed for industrial-grade metal processing. With the latest generation of plasma cutting technology, it can cut carbon steel, stainless steel, aluminum alloy and other metal materials efficiently. This equipment is especially suitable for oil pipelines, pressure vessels, wind power towers and other industrial fields that require strict cutting accuracy.
- E-mail :jay@weldc.com
- WA:+86 1585 2538 958

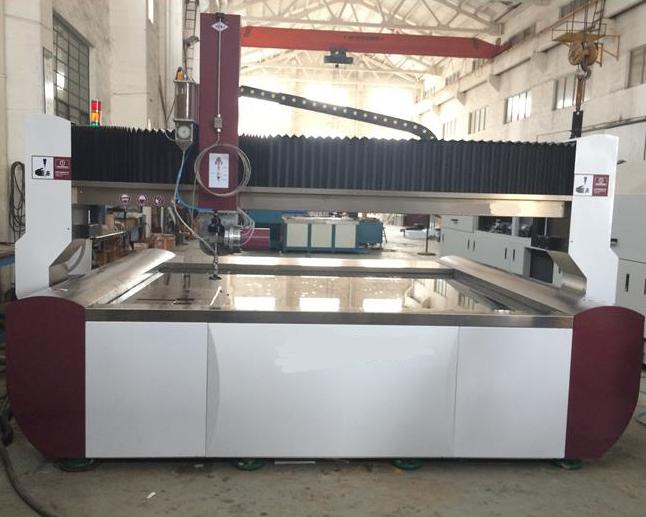

Description of CNC Water Jet Cutting Machine:

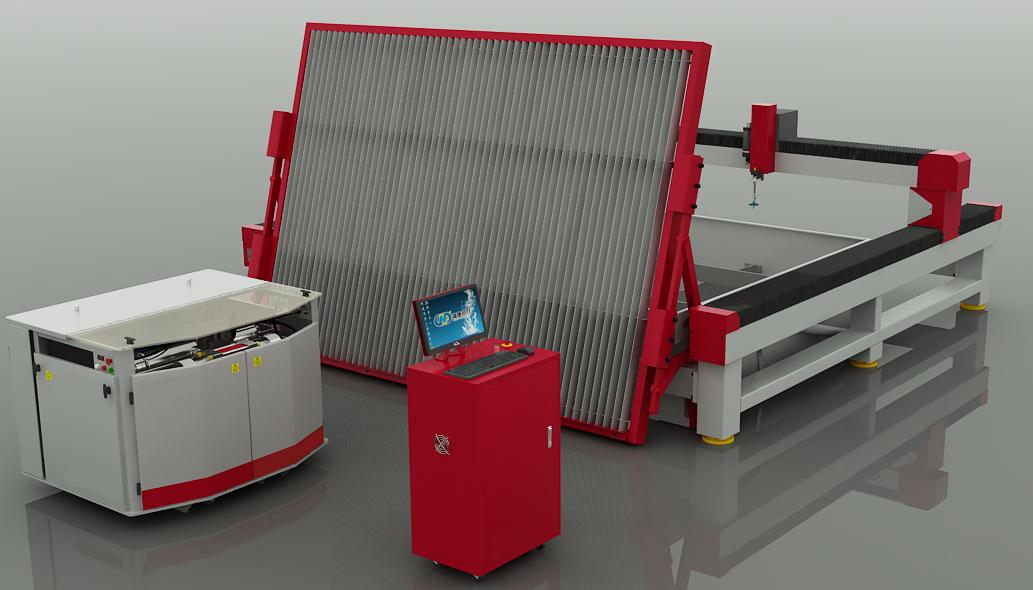

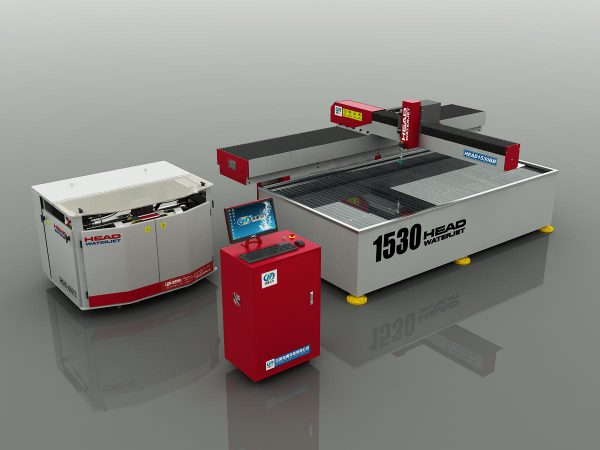

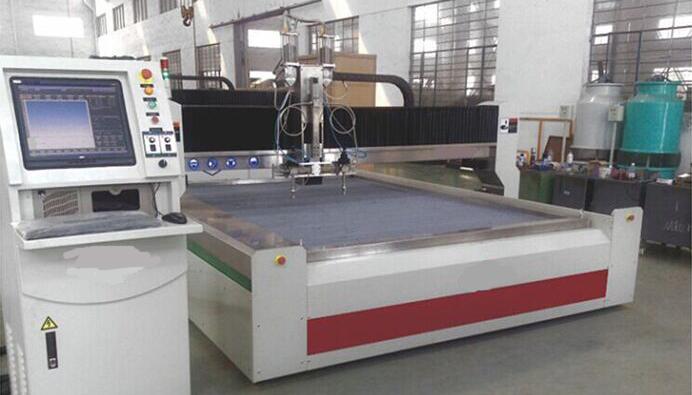

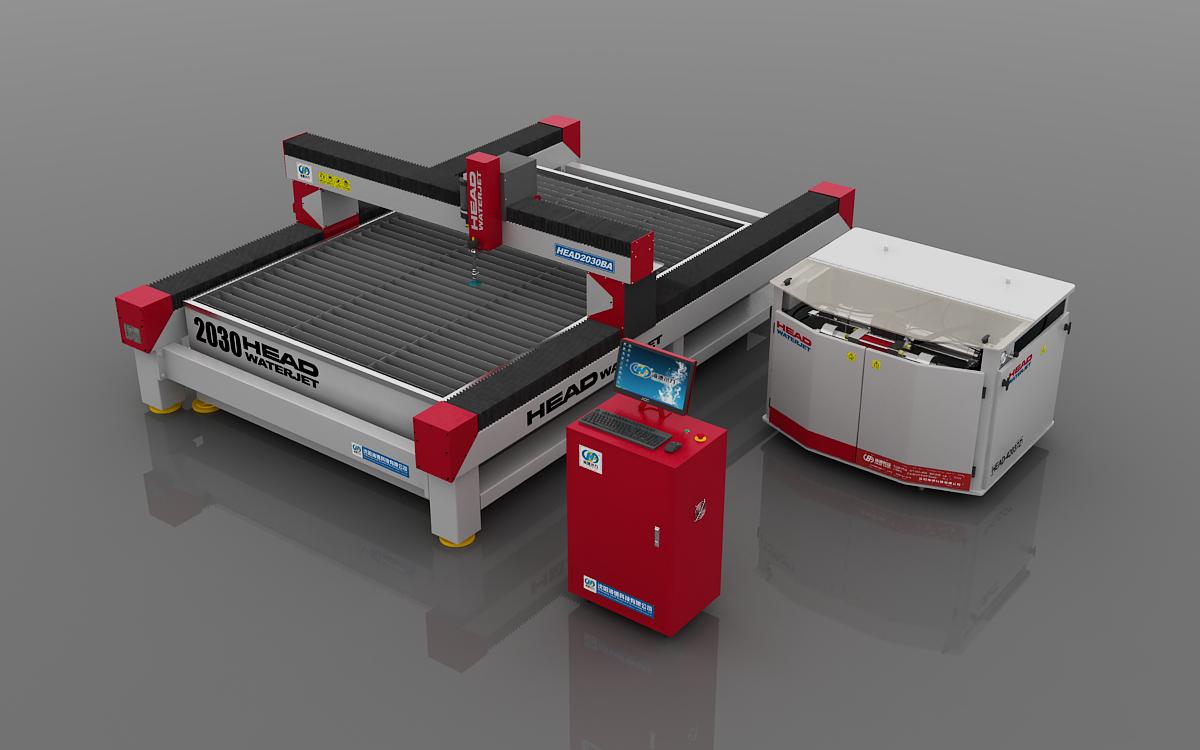

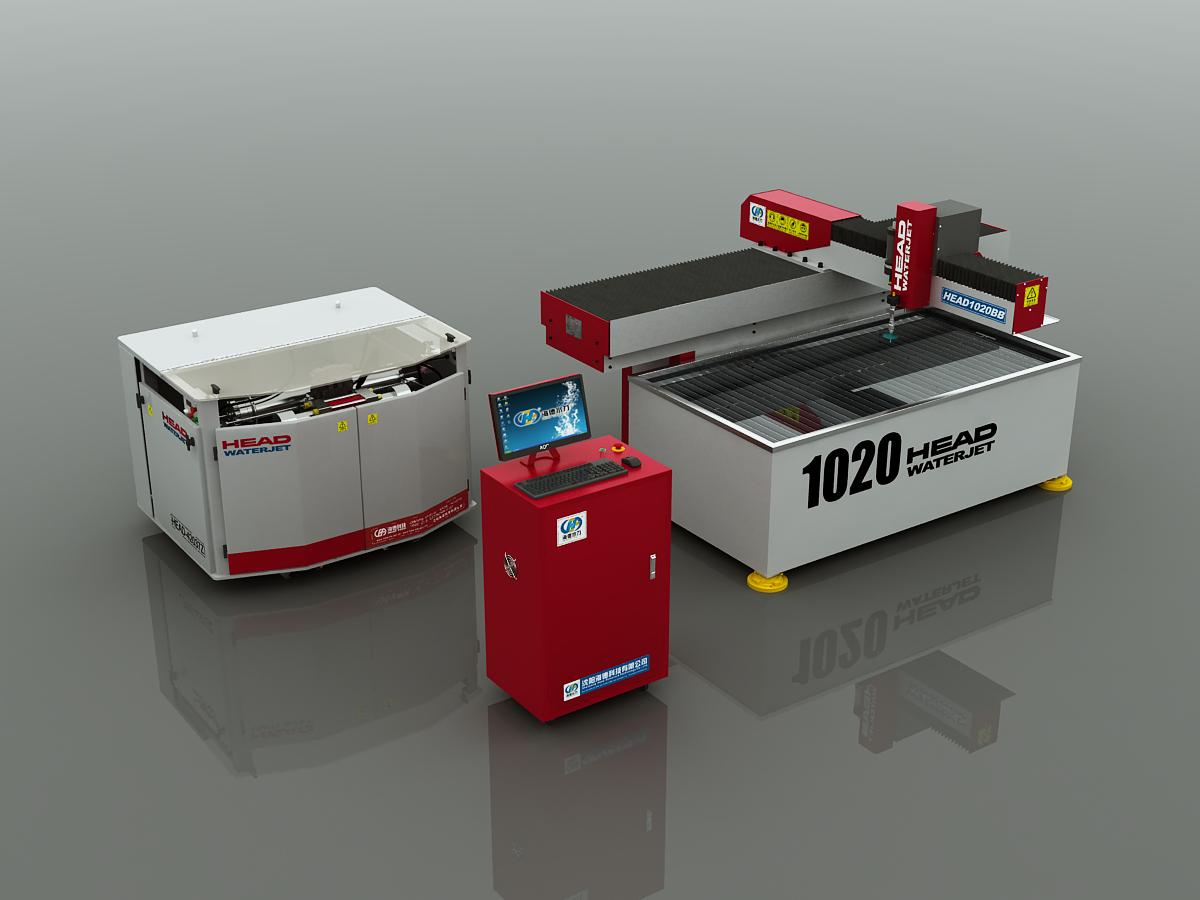

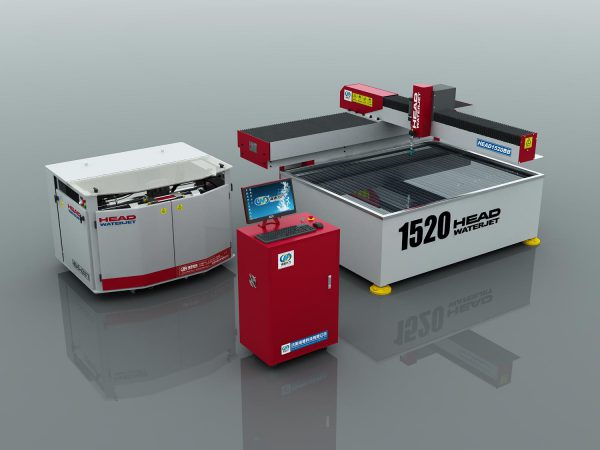

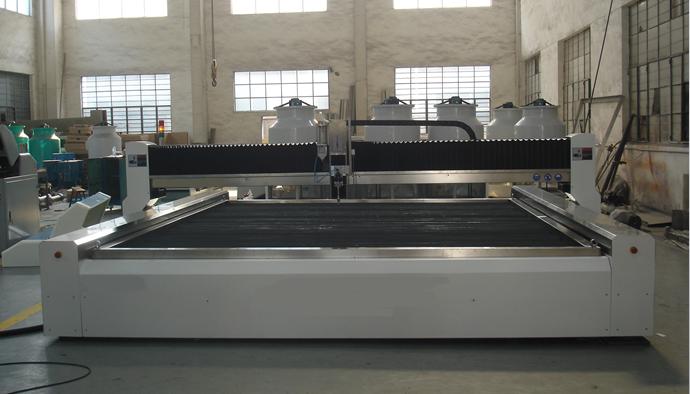

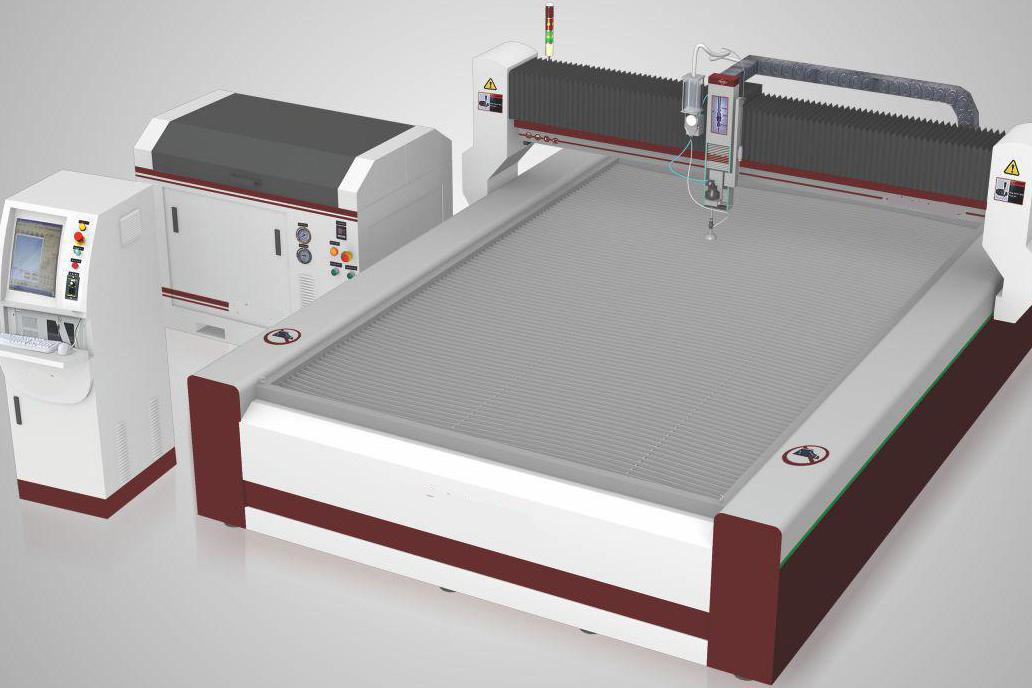

This CNC water jet cutting machine, also known as CNC waterjet cutting machine or CNC water jet cutter, is mainly used to cut metal and nonmetal materials with high velocity and pressure, such as titanium alloy, copper, aluminum, cast iron, granite, marble, ceramic tile, chemical fiber, lumber, cloth, paper, and plastic. And it is widely used in many fields like mining industry, automobiles, paper, food, art and architecture.

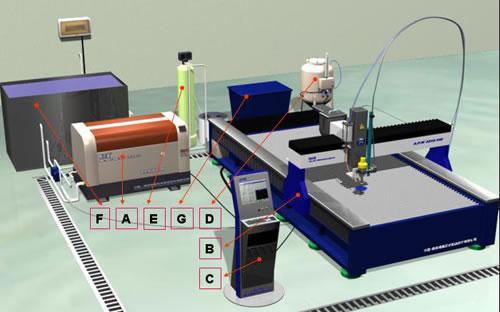

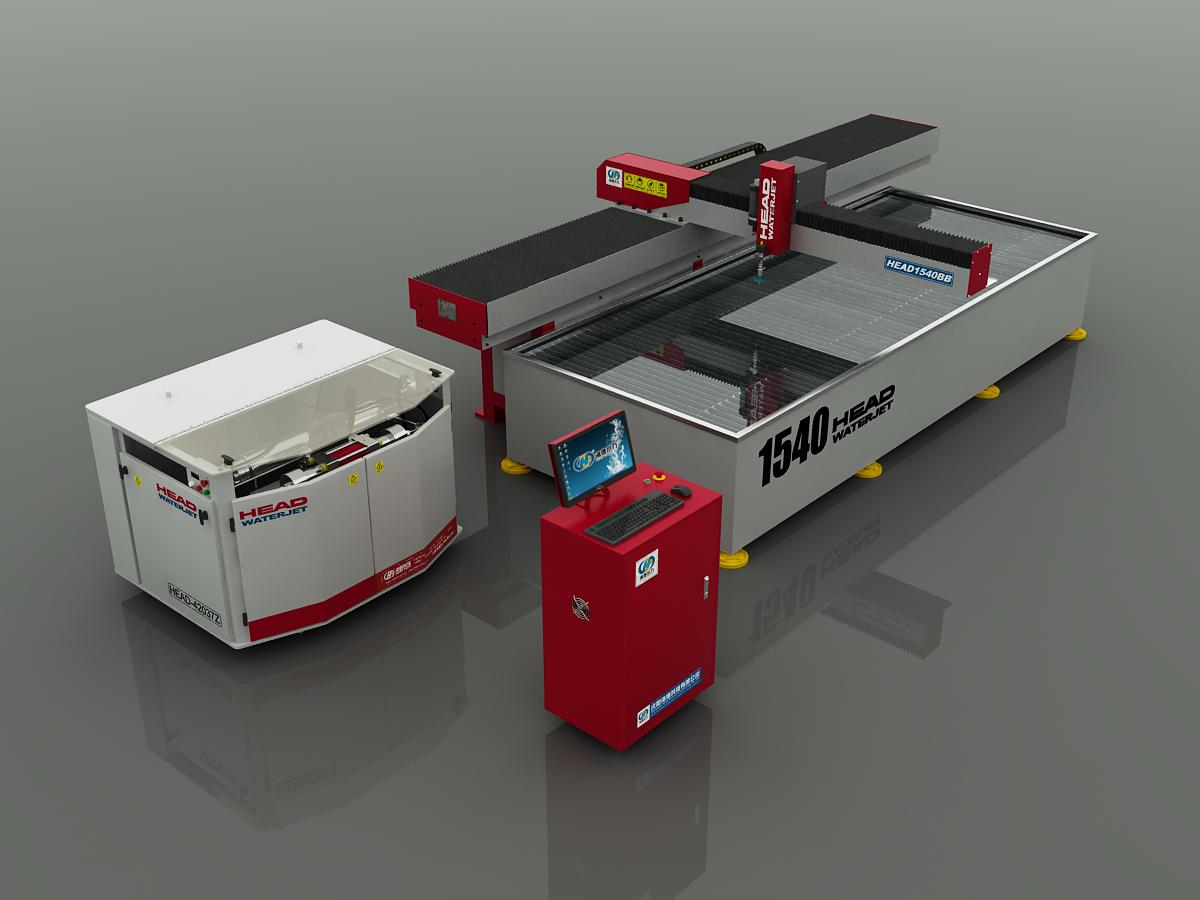

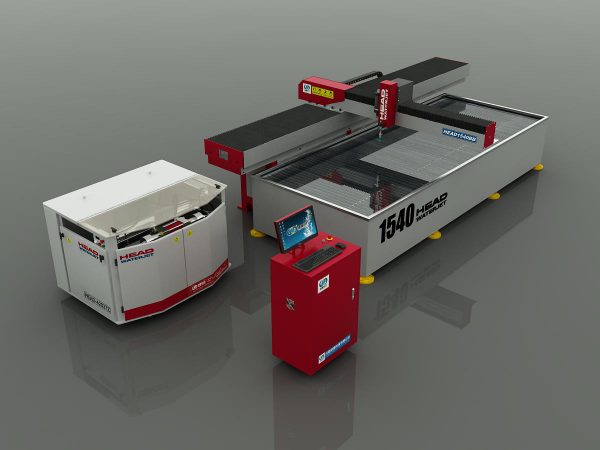

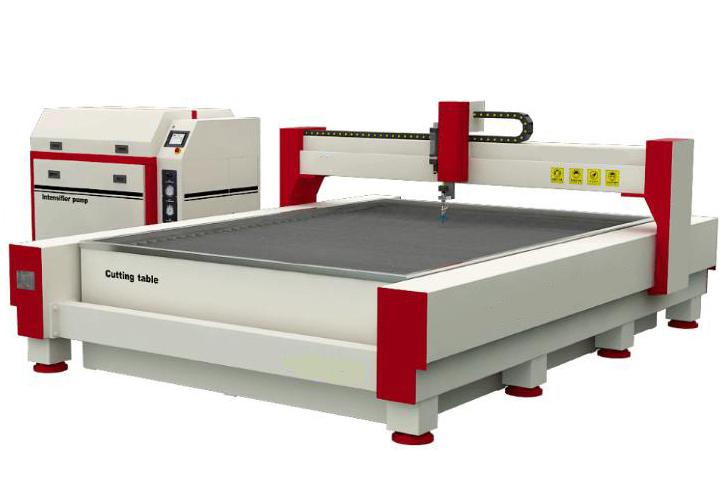

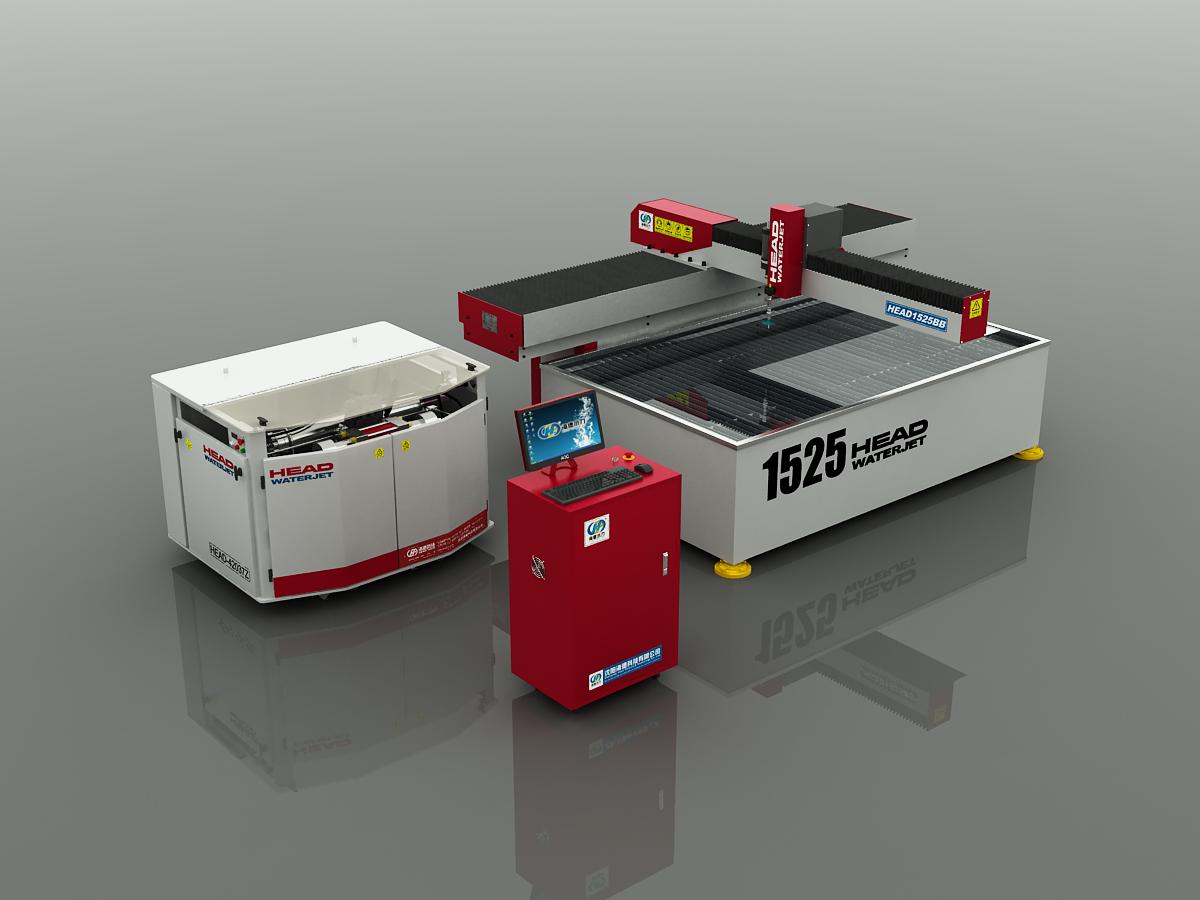

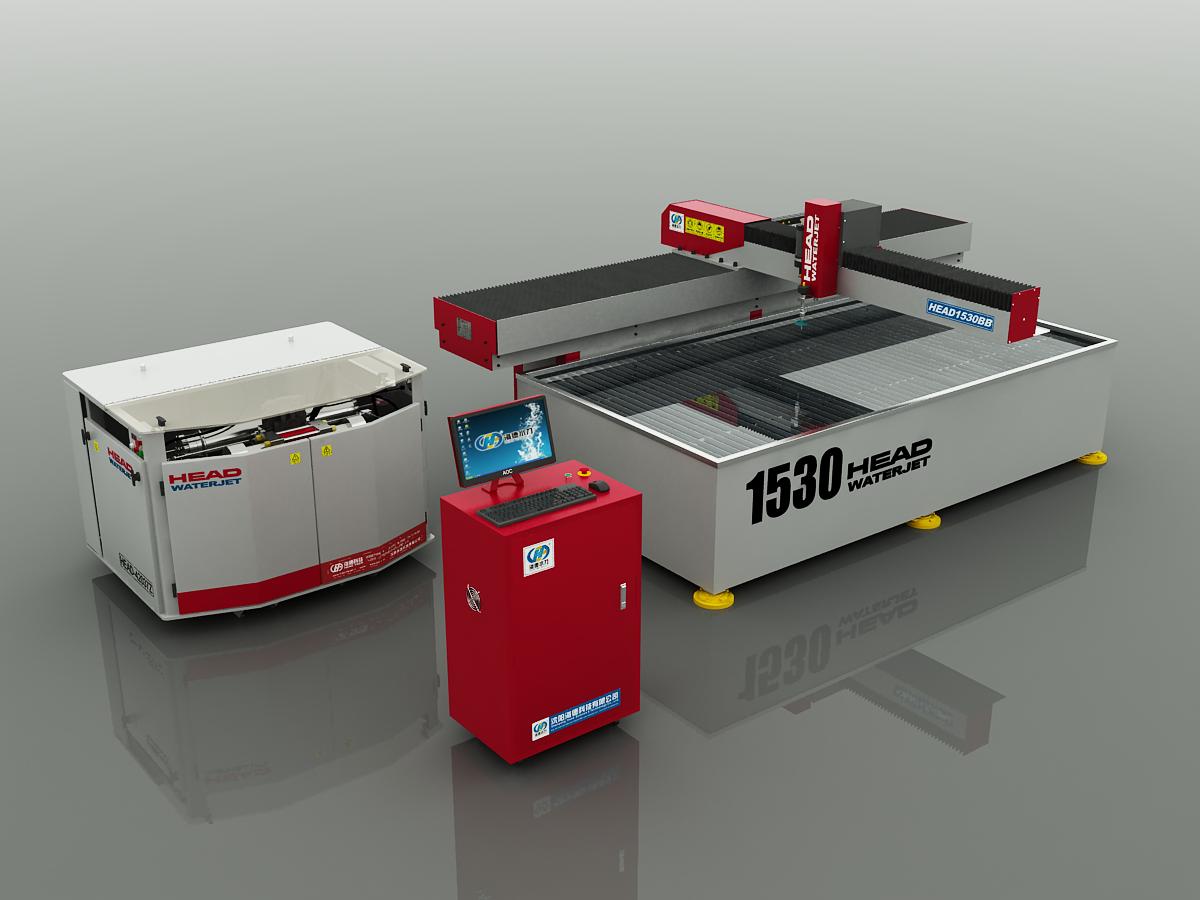

It mainly consists of intensifier pump, cutting table, CNC system, auto sand delivering system, de-ionized water device, and water cooling tank. The CNC system has adopted EVOC brand industrial personal computer, special waterjet cutting software, and Omron brand PLC instead of relay.
This CNC water jet cutter features low noise, no pollution, high precision, good reliability, no dust generation, high cutting efficiency, and no heat deformation.

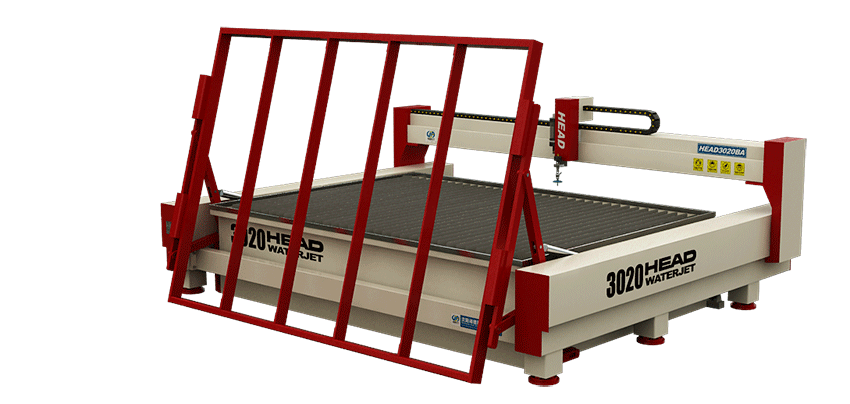

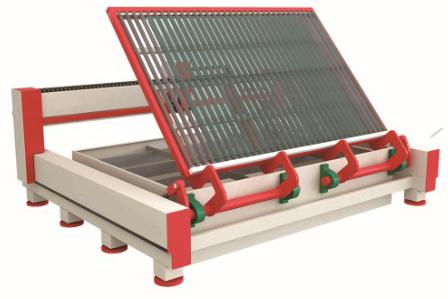

Besides, we can provide cutting tables at specific requirements of our customers, and examples will be given in the following chart.
Core technical characteristics
- Multi-torch cooperative system
- 1-3 plasma cutting torches are standard (flame cutting torch is optional).
- Support multi-torch synchronous/asynchronous cutting.
- Cutting thickness range: 0.5-50mm (depending on plasma power supply)
- Precision mechanical structure
- The key parts are annealed (eliminating internal stress)
- Surface mirror polishing (Ra0.8μm)
- Triple anticorrosion spraying process
- Intelligent lifting device
- Adopt Taiwan Province HIWIN ball guide rail.
- Electric/automatic dual-mode adjustment
- Z-axis repeated positioning accuracy is 0.05 mm.
- Pipeline management system
- Optional towing or hanging wiring.
- Germany yigesi high flexible cable
- Design of modular quick-change interface
- Safety control system
- Auto-ignition function (ignition success rate is 100%)
- Arc pressure height adjustment system (real-time tracking cutting surface)
- Overload protection of plasma power supply
| Model | Width | Length |
| CNC -1010 | 1000mm | 1000mm |
| CNC-1020 | 1000mm | 2000mm |
| CNC-1525 | 1500mm | 2500mm |
| CNC-4060 | 4000mm | 6000mm |
Technical parameter
| Project | Technical indicators |
| Cutting accuracy | ≤±0.15mm/m |
| Maximum cutting speed | 15m/min |
| Operating voltage | 380V±10% 50/60Hz |
| Plasma power supply | Haibao /Hypertherm optional |
| Numerical control system | Siemens 840D sl |
| Operating ambient temperature | -10℃~45℃ |
Industry application case
- Petroleum pipeline: X80 high-strength steel groove cutting
- Wind power equipment: tower flange precision blanking
- Pressure vessel: head curve cutting
- Construction machinery: processing of high-strength steel components
