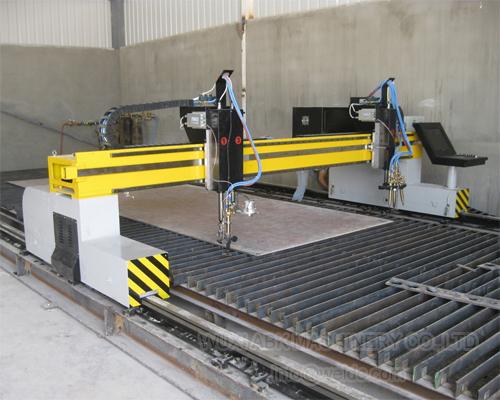

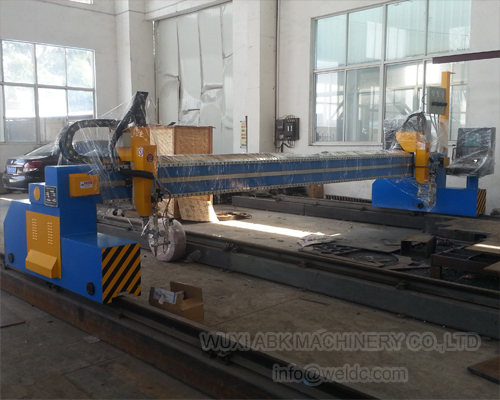

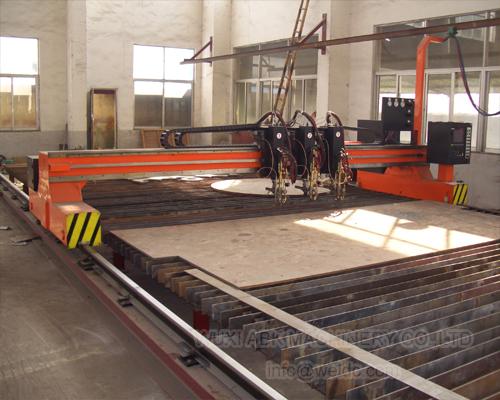

CNC Flame Cutting Machine
WUXI ABK’s CNC flame cutting machine delivers precision cutting for thick carbon steel plates up to 300mm. Featuring advanced gas control and stable performance, it ensures clean cuts with minimal slag. The rugged construction and user-friendly CNC system make it ideal for heavy industrial applications like shipbuilding and construction.
Our CNC flame cutting machine (also known as a CNC flame cutter) is a high-performance industrial cutting system designed for processing a wide range of metals, including mild steel, high carbon steel, stainless steel, aluminum, copper, and other non-ferrous metals. Equipped with advanced automation and precision engineering, this CNC cutting machine is widely utilized in industries such as pipe production, automotive manufacturing, shipbuilding, petrochemical processing, military defense, metallurgy, aerospace, boiler fabrication, pressure vessel construction, and locomotive engineering.
Key Features of the CNC Flame Cutting Machine
-
High Rigidity & Precision Cutting Performance
-
Built with reinforced structural components, this CNC flame cutter ensures high stability and cutting accuracy, making it ideal for heavy-duty industrial applications.
-
All critical parts undergo annealing, precision polishing, and anti-corrosion painting to enhance durability.
-
-
Dual-Mode Cutting System for Enhanced Flexibility
-
Standard flame cutting (optimal for 6-200mm carbon steel) delivers clean, high-quality cuts with minimal slag.
-

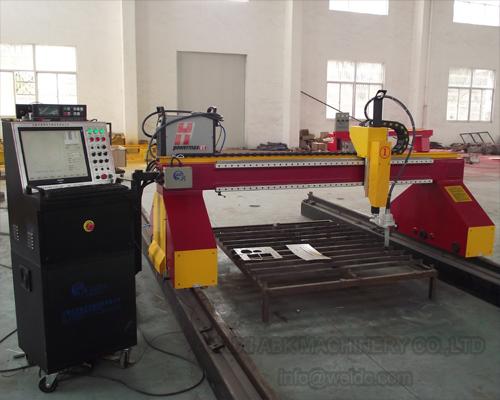

Optional plasma cutting torch (compatible with all major plasma power supply brands) allows for faster processing of stainless steel, aluminum, and other conductive metals.
-
Infinitely adjustable cutting speed (100-750mm/min) ensures optimal performance for varying material thicknesses.
-
-
High-Precision Transmission & Motion Control
-
Imported linear guide rails combined with rack-and-pinion drive systems provide smooth, high-speed movement with ±0.2mm/m repeated positioning accuracy.
-
Automatic torch lifting system (ball guide rail design, 200mm travel range) ensures consistent cutting height for improved edge quality.
-
-
Intelligent CNC Control System
-
Auto-ignition function simplifies operation and improves safety.
-
Memory storage for cutting parameters enables quick setup for repetitive jobs.
-
Fault self-diagnosis system minimizes downtime by detecting and alerting operational issues.
-
Direct CAD file import supports seamless workflow integration for complex cutting patterns.
-
Core Advantages of Our CNC Flame Cutting Machine
✅ Superior Cutting Versatility – Handles carbon steel, stainless steel, aluminum, and non-ferrous metals with flame or plasma options.
✅ High-Speed & Precision Cutting – Optimized CNC flame cutting and plasma cutting capabilities for industrial-grade efficiency.
✅ Durable & Low-Maintenance Design – Robust construction with annealed and polished components ensures long-term reliability.
✅ Smart Automation Features – Auto-height adjustment, ignition, and fault detection enhance productivity.
Whether for heavy fabrication, shipbuilding, or aerospace manufacturing, our CNC flame cutting machine delivers high-speed, high-precision, and multi-functional cutting performance to meet the most demanding industrial requirements. Upgrade your production line with a CNC cutting solution that combines flame and plasma technologies for unmatched flexibility and efficiency.
Technical Parameters of CNC Flame Cutting Machine:
| Model | Driving form | Rail gap (mm) |
Effective width (mm) |
Cutting thickness(mm) | Cutting speed(mm/min) | Max speed (mm/min) | Vertical range (mm) | ||
| Flame cutting | Plasma cutting machine | Flame cutting | Plasma cutting | ||||||
| CNCⅠ-2500 | Single side | 2500 | 1600 | 6-200 (Refer to the performance of the cutting head) | Varies with different models | 100-750 (Refer to the performance of the cutting head) | Varies with the power supply | 6000 | 200 |
| CNCⅠ-3000 | Single side | 3500 | 2100 | 6000 | 200 | ||||
| CNCⅠ-4000 | Single side | 4000 | 3100 | 12000 | 200 | ||||
| CNCⅡ-4000 | Double side | 4000 | 3100 | 12000 | 200 | ||||
| CNCⅡ-5000 | Double side | 5000 | 4100 | 12000 | 200 | ||||
| CNCⅡ-6000 | Double side | 6000 | 5100 | 12000 | 200 | ||||
| CNCⅡ-7000 | Double side | 7000 | 6100 | 12000 | 200 | ||||
| CNCⅡ-8000 | Double side | 8000 | 7100 | 12000 | 200 | ||||
| CNCⅡ-9000 | Double side | 90000 | 8100 | 12000 | 200 | ||||
| CNCⅡ-11000 | Double side | 11000 | 10100 | 12000 | 200 | ||||
| CNCⅡ-12000 | Double side | 12000 | 11100 | 12000 | 200 | ||||
| CNCⅡ-13000 | Double side | 13000 | 12100 | 12000 | 200 | ||||

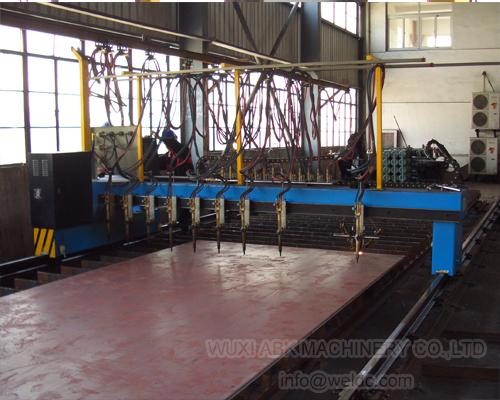

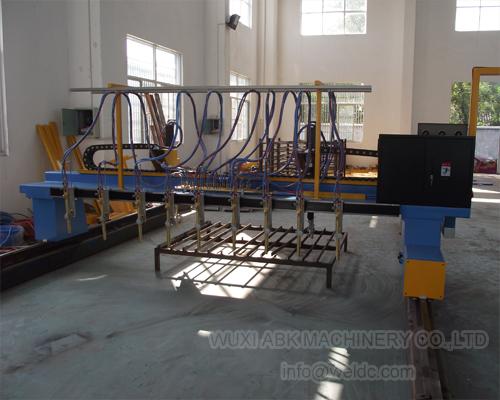

Technical Parameters of CNC Series Digital Multi-Head Straight Cutter:
| Model | Driving form | Rail gap (mm) | Effective width(mm) | Cutting thickness (mm) | cutting speed (mm/min) | Max speed (mm/min) | Vertical range (mm) |
| CNC-3000 | Single side | 3000 | 2100 | 6-200 (Refer to the performance of the cutting head) | 100-750 (Refer to the performance of the cutting head) | 6000 | 150 |
| CNC-3500 | Single side | 3500 | 2600 | 6000 | 150 | ||
| CNC-4000 | Single side | 4000 | 3100 | 12000 | 150 | ||
| CNCⅡ-5000 | Double side | 5000 | 4100 | 12000 | 150 | ||
| CNCⅡ-6000 | Double side | 6000 | 5100 | 12000 | 150 | ||
| CNCⅡ-7000 | Double side | 7000 | 6100 | 12000 | 150 | ||
| CNCⅡ-8000 | Double side | 8000 | 7100 | 12000 | 150 | ||
| CNCⅡ-9000 | Double side | 9000 | 8100 | 12000 | 150 | ||
| CNCⅡ-10000 | Double side | 10000 | 9000 | 12000 | 150 | ||
| CNCⅡ-11000 | Double side | 11000 | 10100 | 12000 | 150 | ||
| CNCⅡ-12000 | Double side | 12000 | 11100 | 12000 | 150 | ||
| CNCⅡ-13000 | Double side | 13000 | 12100 | 12000 | 150 |
Product features
Ⅰ.Military-grade structural design
- Integral annealing to relieve stress
- Precision polishing and spraying treatment
- Service life of key components ≥5 years.
Ⅱ.Multifunctional expansion
- Extensible multi-head direct cutting function
- Support multi-station simultaneous operation
- Optional automatic feeding system
Application area
- Petrochemical industry: pressure vessel cutting
- Shipbuilding: hull plate blanking
- Construction machinery: structural parts molding
- Aerospace: special metal processing
Enterprise strength
◇ Founded in 1999, with 20 years of professional manufacturing experience.
◇ISO9001+CE double authentication
◇ Products are exported to 30+ countries such as Germany and Russia.
◇ Annual production capacity of 200+ sets.
Service guarantee
24-hour technical response
Free operation training
Global spare parts supply
Lifelong maintenance of equipment
Supporting product line
▸ Cnc plasma cutting machine
▸ Wind power tower production line
▸ H-beam welding production line
▸ Metal forming equipment such as plate bender/pipe bender.
Established in 1999, Wuxi ABK Machinery Co.Ltd is a professional manufacturer of CNC flame cutting machine in China. Apart from CNC flame cutting machine, we still have many other high-quality products, such as CNC plasma cutting machine, CNC table cutting machine, wind tower production line, H beam welding line, welding equipment, pipe welding equipment, grinding machine, roll forming machine, plate bending machine, etc. With ISO and CE certification, our products are quite popular among clients from Spain, India, Germany, South Africa, Brazil, Chile, Argentina, Russia, Italy, France, Vietnam, and more. If you need CNC flame cutting machine, please contact us freely.
