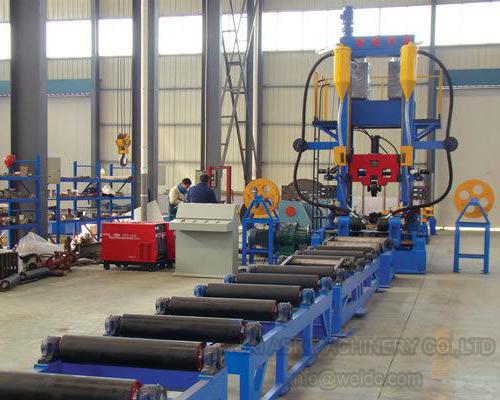

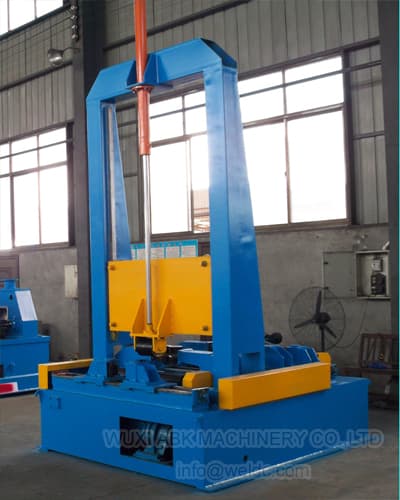

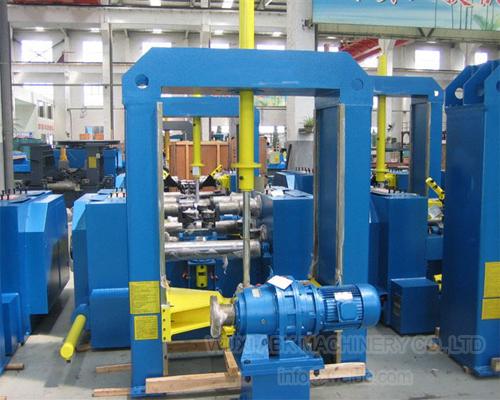

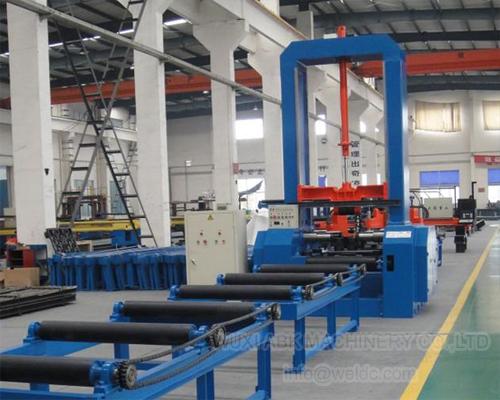

Automatic H Beam Assembly Machine

The Automatic H Beam Assembly Machine is an advanced industrial equipment designed for high-precision assembly and spot welding of various H-beam steel profiles, including symmetrical H-beams, asymmetrical H-beams, eccentric H-beams, and variable cross-section H-beams. By integrating intelligent centering, hydraulic clamping, and automated welding, this machine significantly enhances production efficiency while ensuring superior assembly accuracy.

Wide Adaptability for Full-Range H-Beam Manufacturing

This H beam assembly machine supports a diverse range of steel profiles, making it ideal for structural steel fabrication:

• Standard symmetrical H-beams (equal flange width)

• Asymmetrical H-beams (unequal flange width)

• Eccentric H-beams (web offset design)

• Variable cross-section H-beams (tapered flange applications)
  With a maximum assembly height of 1200mm (expandable to 1500mm) and a maximum flange width of 600mm (expandable to 800mm), this machine accommodates large-scale H-beam production with flexibility for future upgrades.

Core Functional Advantages

1. Intelligent Centering System for Precision Alignment

The H beam assembly machine features an automated laser-vision dual positioning system, ensuring flawless alignment of the web plate and wing plates with a positioning accuracy of 0.3mm. Key innovations include:

• High-precision laser sensors combined with machine vision technology for real-time alignment correction.

• PLC-controlled intelligent tolerance compensation, automatically adjusting for material variations.

• 60% faster centering compared to manual adjustment, reducing setup time and improving productivity.

2. Triple Hydraulic Clamping System for Stable Assembly

To eliminate wobbling during web plate feeding, the machine employs three independent hydraulic clamping units (two for wing plates, one for the web plate), featuring:

• German Rexroth hydraulic system with 5-15MPa adjustable pressure for optimal grip strength.

• Real-time pressure monitoring via embedded sensors to ensure consistent clamping force.

• Anti-slip clamping blocks designed to prevent material shifting during assembly.

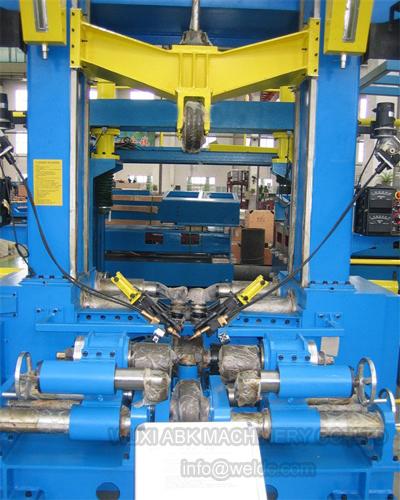

3. High-Efficiency Intelligent Welding System

The H beam welding machine integrates a 16-point automatic positioning welding mechanism, offering:

• Adjustable solder joint spacing for customized welding patterns.

• Stepless speed control (0.5-2m/min) to match different welding requirements.

• Optional laser seam tracking for enhanced weld precision.

• Welding parameter database for quick setup of different H-beam welding processes.

• Automatic gun cleaning and dust extraction to maintain welding quality and a clean workspace.

Technological Innovations for Superior Performance

The Automatic H Beam Assembly Machine stands out due to its automation, precision, and adaptability, making it a top choice for steel fabrication plants. By combining hydraulic clamping, intelligent centering, and robotic welding, it ensures high-speed, high-accuracy H-beam production with minimal manual intervention.

For manufacturers seeking automated H-beam assembly solutions, this machine delivers unmatched efficiency, reliability, and scalability—perfect for modern steel structure fabrication.

Main Technical Parameter:

By absorbing merits of similar automatic H beam assembly machine and using new technology from abroad and China domestic, Wuxi ABK is the professional producer to develop and manufacture the family automatic H beam assembly machine products as well as H beam (heavy steel) welding production line, as well as box-beam automatic welding production line, T-beam welding production line, bridge-face U-stiffer welding production line, and steel structure cold roll forming production line as well as CNC waterjet cutting machine. With years development, ABK automatic H beam assembly machine have been spread over Saudi Arabia, Russia, Middle Asian, Southeast Asian, Australia, Europe, South American, North American, etc. Look forward to establishing mutually beneficial cooperation.
