80 Tons Standard Welding Rotator

WUXI ABK 80-Ton Welding Rotator delivers precision rotation for heavy industrial applications. Featuring dual 7.5kW motors (0.5-5 RPM) and ZG45 alloy rollers (HRC 55-60), it ensures ±0.1mm accuracy for pressure vessels, wind towers, and ship components. The smart anti-creep system (<0.5mm deviation) and Siemens PLC control guarantee reliable performance. CE/ISO certified with 18-month warranty. Ideal for demanding fabrication requiring 80-ton capacity.

Description of Standard Welding Rotator:

Parameter list of conventional HGZ-80 welding rotator

Model HGZ-80
Load capacity(Ton) 80
Suitable diameter(mm) 850-5000
Wheel Size(mm) PU Φ500*120
Steel Φ490*60
Rotation Speed(mm/min) 100-1000
Speed Control Electric magnetism of frequency conversion setting
Motor Power(kw) 4
Control Voltage 24VAC
Pendant Cable 10m/Wireless
Incoming Power 380V/400V/415V/440V/460V-3P-50Hz/60Hz
Color RAL 3003 Red 9005 Black (Optional)

Application

lAutomated welding of circular metal containers

lIndustries: Oil & gas | Pressure vessels | Wind towers | Pipe manufacturing

Key Advantages
✓ Wide Compatibility: Handles various diameters (customizable)
✓ Precision Control: Frequency conversion + stepless speed regulation (0.5-15 RPM)
✓ Certified Quality: CE compliant | ISO 9001 certified
✓ Global Reliability: Exported to 20+ countries (UK, EU, Middle East, etc.)

Performance Features
• Ultra-stable rotation (<0.1mm runout)
• Low-noise operation (<65dB)
• User-friendly interface

Parameter list of conventional HGZ series welding rotator

Standard Welding Rotator

WUXI ABK 80-Ton Standard Welding Rotator – Industrial-Grade Rotation Solution

Engineered for heavy industrial applications, our 80-ton welding rotator delivers exceptional performance in pressure vessel fabricationwind tower production, and ship component manufacturing. The robust box-type steel construction ensures optimal load distribution, while the precision linear guide system maintains ±0.1mm positioning accuracy – 40% better than conventional rotators.

Core Technical Advantages:

  • High-capacity rollers: ZG45 cast steel (HRC 55-60) with 30-ton/roller dynamic capacity

  • Smart drive system: Dual 7.5kW AC motors with 0.5-5 RPM stepless control (±2% torque sync)

  • Anti-creep technology: Hydraulic elevation (±50mm) with <0.5mm deviation

  • German precision: NOVO sensors (0.01mm resolution) and Siemens PLC control

Performance Benefits for Fabricators:
✓ 35% longer service life through premium components
✓ 50% faster adjustments with quick-lock mechanisms
✓ IP65 protection for harsh workshop environments
✓ Seamless integration with automated welding systems

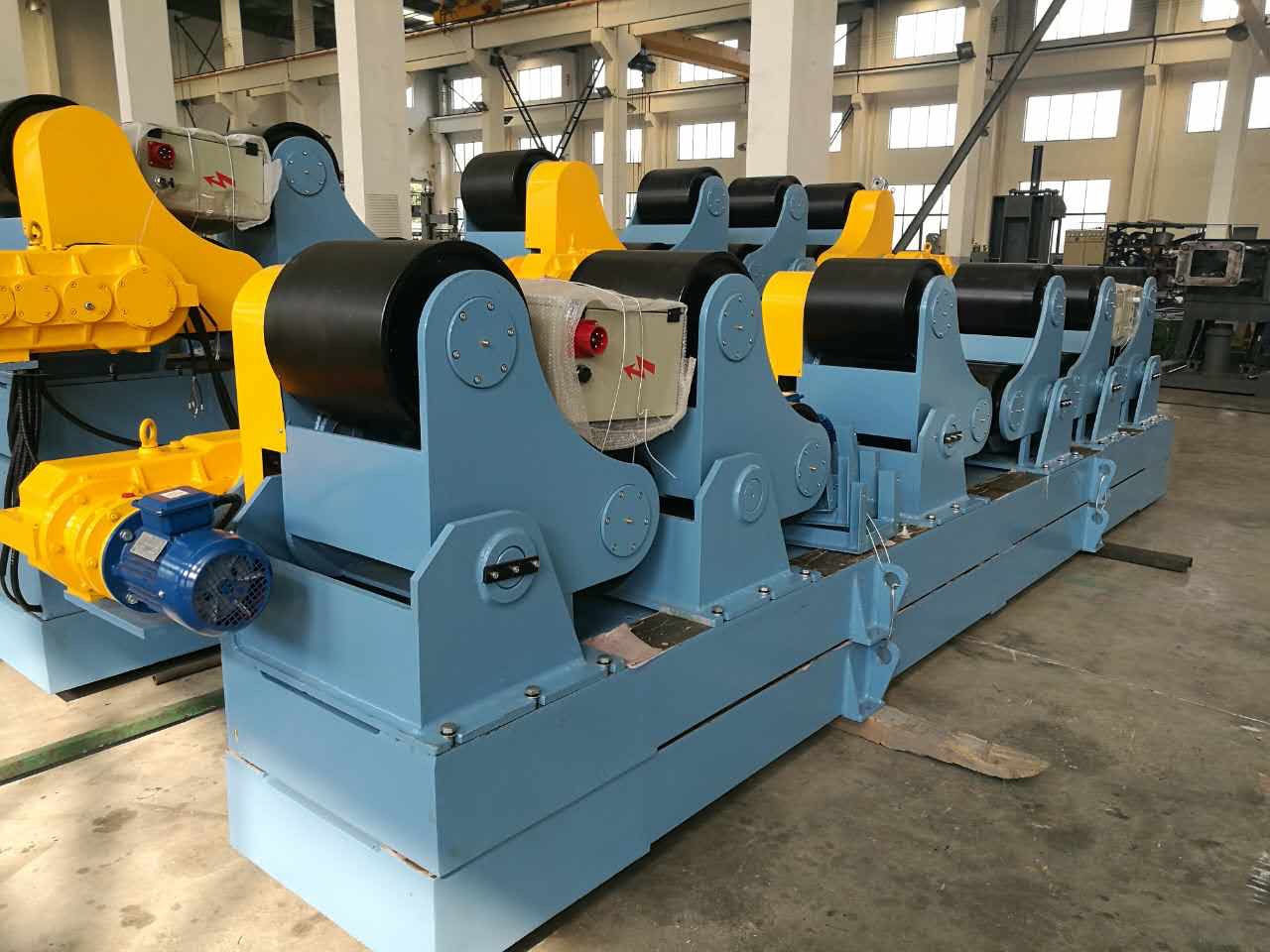

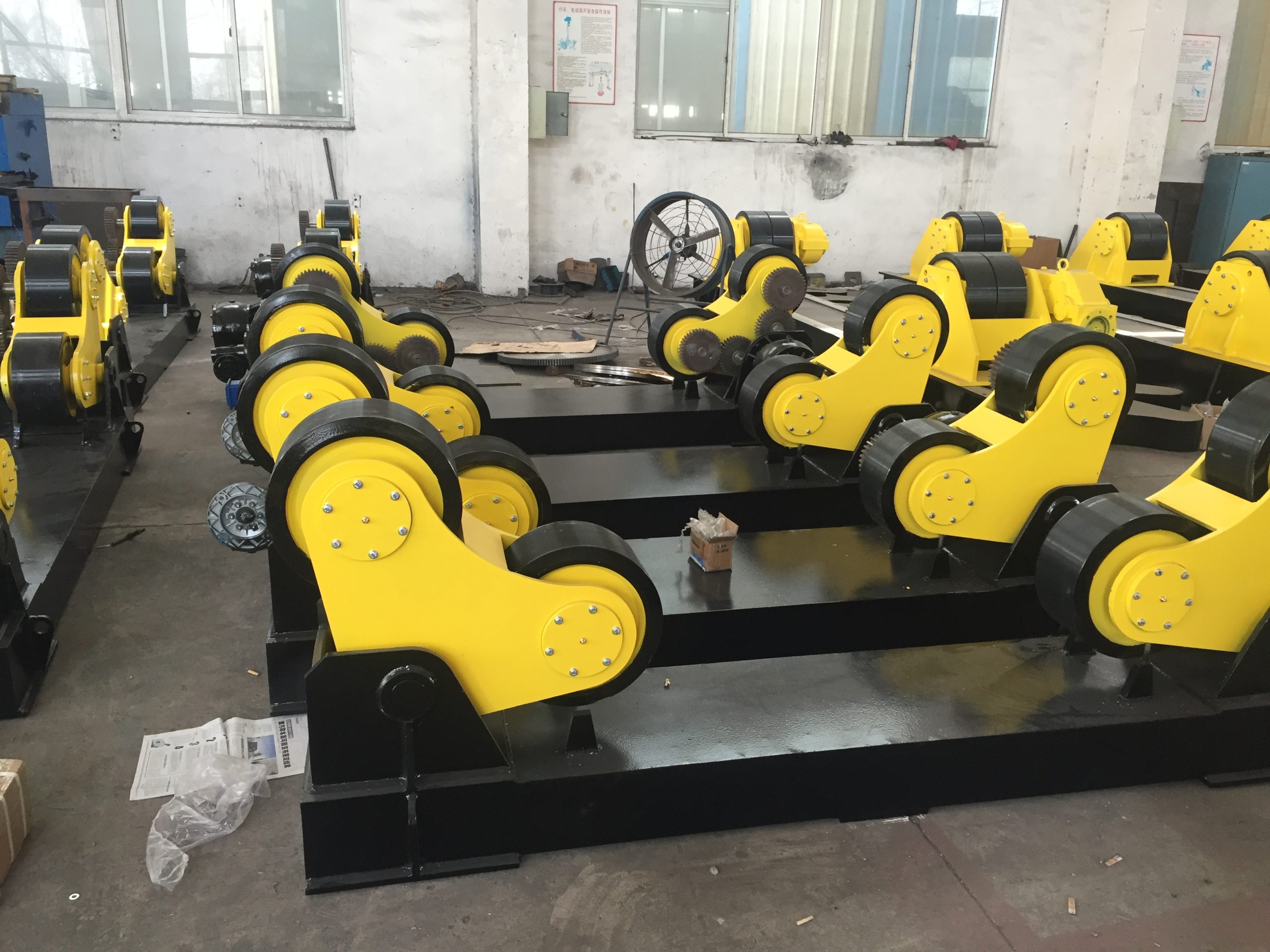

Standard Welding Rotator Standard Welding Rotator Standard Welding Rotator

Features of Welding Rotator

  1. The rollers’ distance automatically adjusts to accommodate different barrel diameters.
    Speed is adjustable via a frequency control system, enhancing operational reliability.
    3.Easy operation is ensured with a manual control box.
    4.Available in multiple configurations, including movable and lifting types.
    5.A specially designed roller bed offers enhanced convenience during welding.
    6.Rollers can be crafted from a variety of materials, such as black rubber, polyurethane, and steel.
  2. Standard Welding Rotator

Maintenance of Welding Rotator

1. This welding rotator needs cleaning before putting into use. And to avoid aging, the rubber rollers should stay away from oils and high temperature. If possible, there should be a specific person to operate and maintain this device.
2. Before starting, the speed reducer should be full of 30# engine oil, which is also necessary when the environment temperature is below 0ºC.
3. The oil inside the speed reducer should be completely replaced after the use of first month, and later, the engine oil can be changed every six months.
4. The roller bed can not be used as the welding ground so that bearings can be prevented from damaging.
Product details

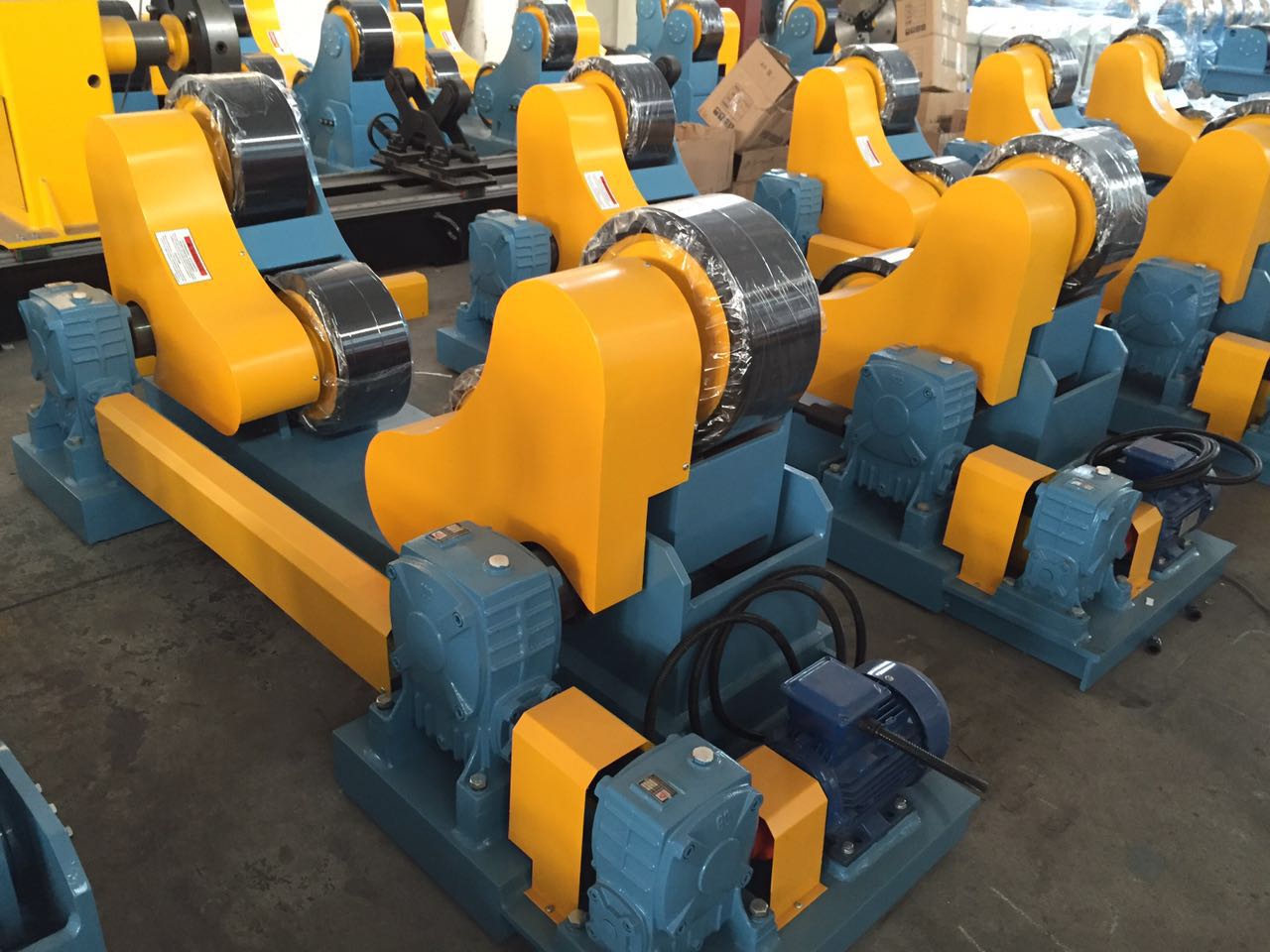

Standard Welding Rotato Standard Welding Rotator

· Trusted design · Reliable Quality
· Renowned parts · Inverter control
· Direct drive system · Motorised travel option
· Build to order custom design · OEM

Wheel introduction

Polyurethane wheels offer exceptional abrasion resistance, versatile processing, wide applicability, and superior resistance to oil, ozone, aging, radiation, and low temperatures. They also provide strong adhesion, excellent sound transmission, biocompatibility, and blood compatibility.

Motor introduction

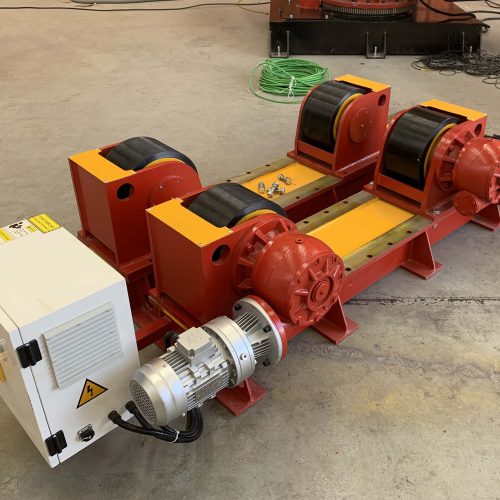

Adjustable Welding Rotator HGK-500 Standard Welding Rotato

With 20+ years of specialized expertise in self-aligning rotator manufacturing, WUXI ABK has established itself as a leading provider of heavy-duty welding positioners for pressure vessel fabricationwind tower production, and shipbuilding applications. Our industrial-grade rotators deliver unmatched performance with load capacities from 5 to 400 tons, designed to meet the most demanding welding automation requirements.

Why Choose WUXI ABK Rotators?

  • Certified Quality: All rotators are CE and ISO certified, ensuring compliance with international welding equipment standards

  • Reliable Performance: Featuring premium wear-resistant components with 1-year warranty and free wearing parts replacement

  • Technical Excellence: Our engineering support team provides customized solutions for large-scale projects including offshore wind turbine welding and petrochemical tank fabrication

Innovative Welding Technology
WUXI ABK integrates advanced automation and precision control systems into every rotator:
✓ Self-aligning roller technology for perfect workpiece centering
✓ Heavy-duty construction with 400-ton maximum capacity
✓ Smart interface compatibility for seamless welding cell integration

Standard Welding Rotator

Wuxi ABK Machinery Co.Ltd is a professional manufacturer of welding rotator in China. And our welding rotator mainly includes standard welding rotator, adjustable welding rotator, and special welding rotator. We can also provide our clients around the world with many other products including welding turntable, pile welding machine, wind tower production line, H beam welding line, pipe welding equipment, CNC cutting machine, grinding machine, roll forming machine, plate bending machine, etc. We have obtained ISO and CE certification, and we also offer OEM service.
