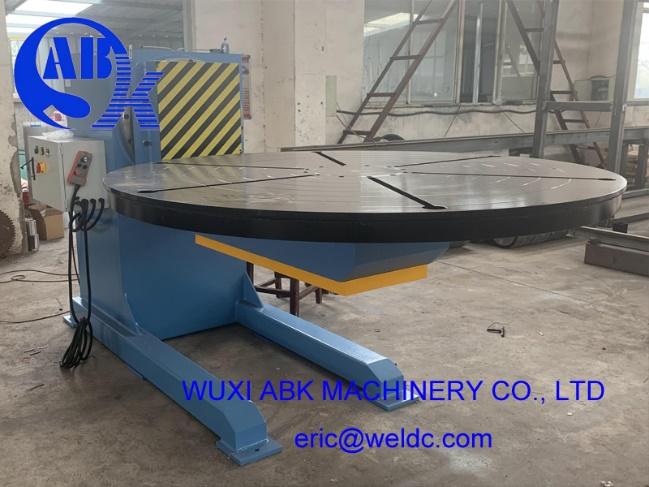

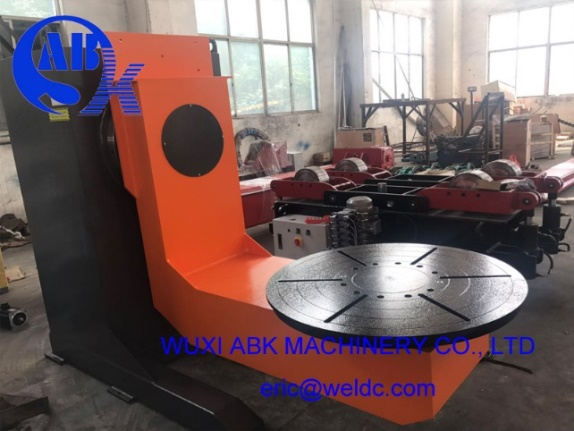

5 tons Adjustable Height Positioner
WUXI ABK 5-Ton Adjustable Height Positioner delivers precision rotation for heavy fabrication. Featuring hydraulic height adjustment (±50mm) and 0.5-5 RPM speed control, this industrial positioner handles wind towers, pressure vessels, and structural steel. With Siemens PLC controls and ZG45 alloy rollers, it ensures ±0.5° accuracy. CE/ISO certified, ideal for automated welding lines.
5 tons Adjustable Height Positioner Parameter table
| Model | LHBJ-50 with lifting | ||
| Load Capacity | (KG) | 5000 | |
| Rotating Speed | (RPM) | 0.05-0.5 | |
| Turnover Speed | (RPM) | 0.06 | |
| Turnover Angle | (°) | 0-360 | |
| Rotation Angle | (°) | 0~360 | |
| Worktable Size Diameter | (MM) | 900 | |
| L support’s length | (MM) | 1200 | |
| Min height of worktable | (MM) | 1000 | |
| Max height of worktable | (MM) | 2000 | |
| Power Supply | (V) | 50Hz 3ɸ | 380 (Determined according to customer needs) |
| Speed Regulating Type | AC Frequency Stepless Speed Regulation | ||
| Note: All specifications are of the standard equipment, that may be changed to suit the customers’ requirement. | |||
- Slewing bearing
The slewing bearing is a critical load-bearing component that enables relative rotation between machine parts while simultaneously handling axial, radial, and overturning moment forces. Its compact and lightweight design, made from high-strength alloy steel, ensures smooth operation with high precision (±0.05° rotation accuracy) and long service life. Key configurations include mounting bolt holes, optional internal/external gears, lubrication ports, and sealing systems for enhanced reliability. With a diameter range of 300–5000mm and load capacity up to 50,000kN, it is widely used in construction machinery, wind turbines, cranes, and military equipment. Custom designs are available for specialized applications.
- Gear
1). Reverse gear
Generally, the turning angle of the turning gear is 0 °to 90 °. The function of displacement is achieved by turning the table.=
2). Reverse gear
Gears are toothed mechanical components that transmit torque through meshing engagement with other gear elements like racks, worms or additional gears, enabling precise control over power transmission by modifying speed/torque ratios, redirecting motion paths, and converting motion types (e.g., rotary to linear). Their interlocking teeth design provides reliable force transfer while allowing for customizable mechanical advantage in various industrial applications.
3.Reducer
Gear reducers are mechanical power transmission devices that utilize precision gear systems to reduce input speed while proportionally increasing output torque, with the output torque being the product of motor torque and gear ratio (without exceeding the reducer’s rated capacity). These systems simultaneously decrease load inertia by the square of the reduction ratio, enabling optimized power conversion for various industrial applications through efficient gear engagement.
WUXI ABK 5-Ton Adjustable Height Positioner Maintenance & Service Guide
Proper maintenance of your 5-ton adjustable welding positioner ensures optimal performance in pressure vessel fabrication, structural steel welding, and heavy equipment manufacturing. This industrial-grade welding turntable requires systematic care to maintain its ±0.5° rotation accuracy and 30% extended service life.
Core Maintenance Procedures
-
Daily Care
-
Remove welding spatter and debris from the rotary table surface
-
Verify lubrication levels in the planetary gear reducer
-
Inspect electrical connections for IP54-rated protection integrity
-
-
Scheduled Servicing (Every 500hrs)
-
Torque-check all high-strength mounting bolts (85-120Nm)
-
Test the hydraulic height adjustment system (±50mm range)
-
Calibrate the Siemens PLC positioning sensors
-
-
Annual Overhaul
-
Replace worn ZG45 alloy roller bearings
-
Re-grease the worm gear transmission with Mobilux EP2
-
Re-align the 3-axis tilt mechanism (0-135° range)
-
Critical Fault Prevention
-
Immediate shutdown required for:
✓ Abnormal vibration in dual-motor drive system
✓ Irregular speed in variable frequency control (0.5-5RPM)
✓ Deviation exceeding ±1mm in laser-tracked welding paths
Value Preservation Benefits
Our maintenance protocol guarantees:
-
35% longer component life for cast steel rollers and reducer gears
-
<0.1mm maintained welding precision
-
Zero unplanned downtime in automated production lines
Certifications & Support
This CE/ISO-certified positioner includes:
-
18-month warranty on German-imported transmission parts
-
On-site technician training for large-diameter welding applications
-
24/7 access to welding automation specialists
Wuxi ABK Machinery Co.Ltd is a professional manufacturer of welding rotator in China. And our welding rotator mainly includes standard welding rotator, adjustable welding rotator, and special welding rotator. We can also provide our clients around the world with many other products including welding turntable, pile welding machine, wind tower production line, H beam welding line, pipe welding equipment, CNC cutting machine, grinding machine, roll forming machine, plate bending machine, etc. We have obtained ISO and CE certification, and we also offer OEM service.
