20 Tons Standard Welding Rotator

A robust standard welding rotator for cylindrical welding, featuring 20-ton capacity and 0.5-5 RPM speed control. Ensures precise rotation for pipe welding and vessel fabrication. With dual-motor drive and ±0.1mm accuracy, ideal for heavy fabrication and industrial weldingCE/ISO certified.

Description of Standard Welding Rotator:

Parameter list of conventional HGZ-20 welding rotator

Model HGZ-20
Load capacity(Ton) 20
Suitable diameter(mm) 500-3500
Wheel Size(mm) PU Φ350*120
Steel Φ340*30
Rotation Speed(mm/min) 100-1000
Speed Control Electric magnetism of frequency conversion setting
Motor Power(kw) 1.5
Control Voltage 24VAC
Pendant Cable 10m/Wireless
Incoming Power 380V/400V/415V/440V/460V-3P-50Hz/60Hz
Color RAL 3003 Red 9005 Black (Optional)

The 20-ton welding rotator is engineered for automated welding of circular metal containers across critical industries including oil & gas pipelinespressure vessel fabricationwind tower production, and large-diameter pipe manufacturing. This industrial welding positioner combines robust construction with intelligent control systems to deliver unmatched performance in heavy fabrication applications.

Key Advantages

  • Wide diameter compatibility with customizable roller configurations for vessel welding and structural steel fabrication

  • Precision rotation control through frequency conversion technology (0.5-15 RPM stepless speed)

  • Ultra-stable operation with <0.1mm runout accuracy for high-quality weld seams

  • Low-noise design (<65dB) suitable for shipyard and plant environments

  • Global certifications including CE and ISO 9001 for welding automation equipment

Technical Highlights
The welding rotator features:
✓ Dual-motor drive system for balanced torque distribution
✓ Heavy-duty roller bearings rated for continuous rotator operation
✓ Intuitive HMI interface with preset programs for tank welding
✓ Modular design allowing quick adaptation to pipe welding and boiler fabrication

Proven Reliability
Exported to 20+ countries including the UK, EU, and Middle East, this welding positioner is trusted for:

  • LNG storage tank construction

  • Wind turbine flange welding

  • Chemical vessel production

Parameter list of conventional HGZ series welding rotator

Standard Welding Rotator HGZ-20

Our 20-ton welding rotator delivers precision rotation for industrial fabrication applications, featuring a heavy-duty box-type steel frame that ensures optimal load distribution during operation. The system incorporates premium ZG45 high-strength cast steel rollers with HRC 55-60 hardness, each supporting 30-ton dynamic loads for demanding welding applications. With its advanced dual-motor drive system (2×7.5kW AC motors) and frequency converter control, the welding rotator achieves precise speed regulation from 0.5 to 5 RPM while maintaining ±2% torque synchronization accuracy.

Key technical features include:

  • Precision linear guide system (±0.1mm positioning accuracy)

  • Hydraulic elevation adjustment (±50mm range) with automatic centerline alignment

  • German NOVO displacement sensors (0.01mm resolution)

  • Siemens/ABB PLC control system with IP65 protection

Performance advantages over conventional welding rotators:
✓ 40% improvement in positioning accuracy
✓ 35% longer service life for critical components
✓ 50% faster adjustment operations
✓ <0.5mm creep prevention capability

This industrial-grade welding positioner is particularly suitable for:
• Pressure vessel fabrication
• Wind tower manufacturing
• Shipbuilding components
• Large-diameter pipe welding
• Structural steel fabrication

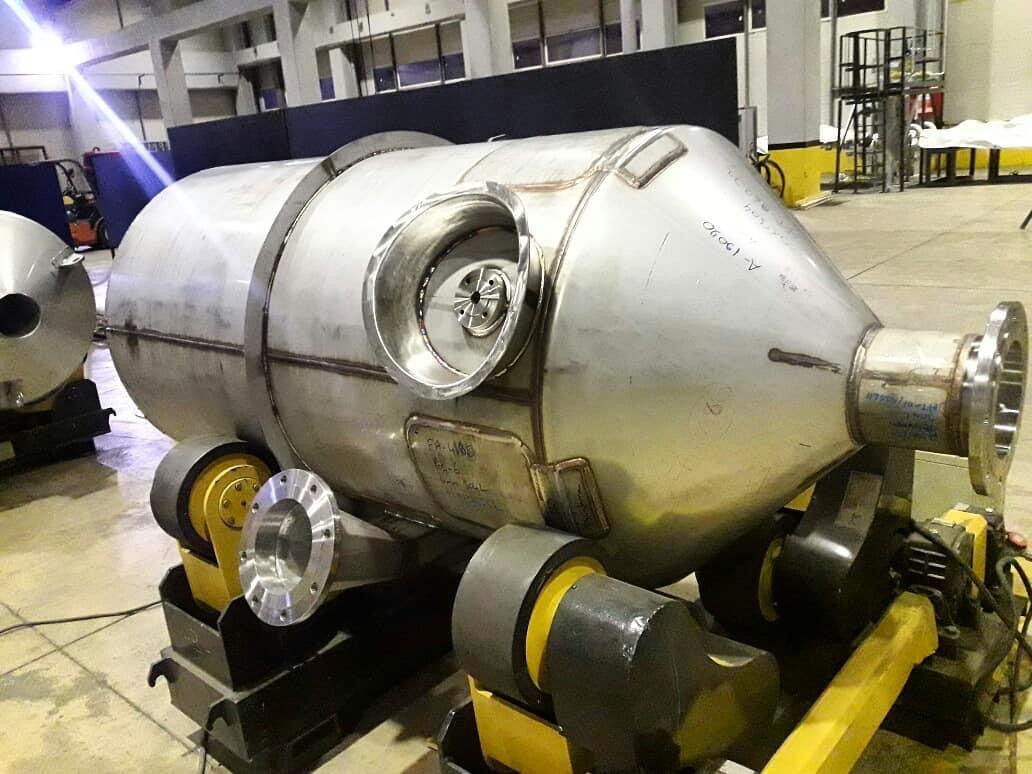

Standard Welding Rotator HGZ-20 Standard Welding Rotator HGZ-20

Features of Welding Rotator

  1. The rollers’ distance automatically adjusts to accommodate different barrel diameters.
    Speed is adjustable via a frequency control system, enhancing operational reliability.
    3.Easy operation is ensured with a manual control box.
    4.Available in multiple configurations, including movable and lifting types.
    5.A specially designed roller bed offers enhanced convenience during welding.
    6.Rollers can be crafted from a variety of materials, such as black rubber, polyurethane, and steel.

Standard Welding Rotator HGZ-20

Maintenance of Welding Rotator

1. This welding rotator needs cleaning before putting into use. And to avoid aging, the rubber rollers should stay away from oils and high temperature. If possible, there should be a specific person to operate and maintain this device.
2. Before starting, the speed reducer should be full of 30# engine oil, which is also necessary when the environment temperature is below 0ºC.
3. The oil inside the speed reducer should be completely replaced after the use of first month, and later, the engine oil can be changed every six months.
4. The roller bed can not be used as the welding ground so that bearings can be prevented from damaging.

Product details

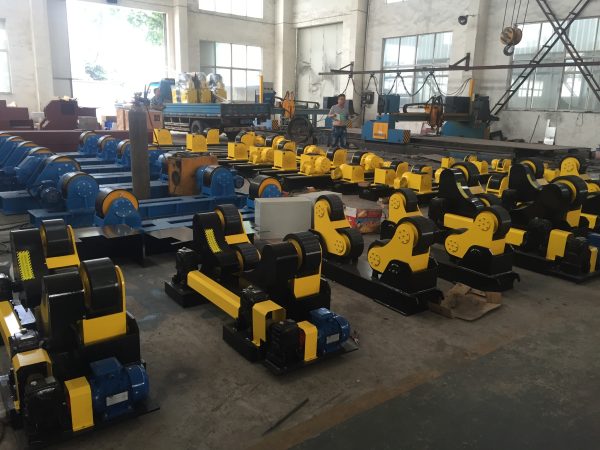

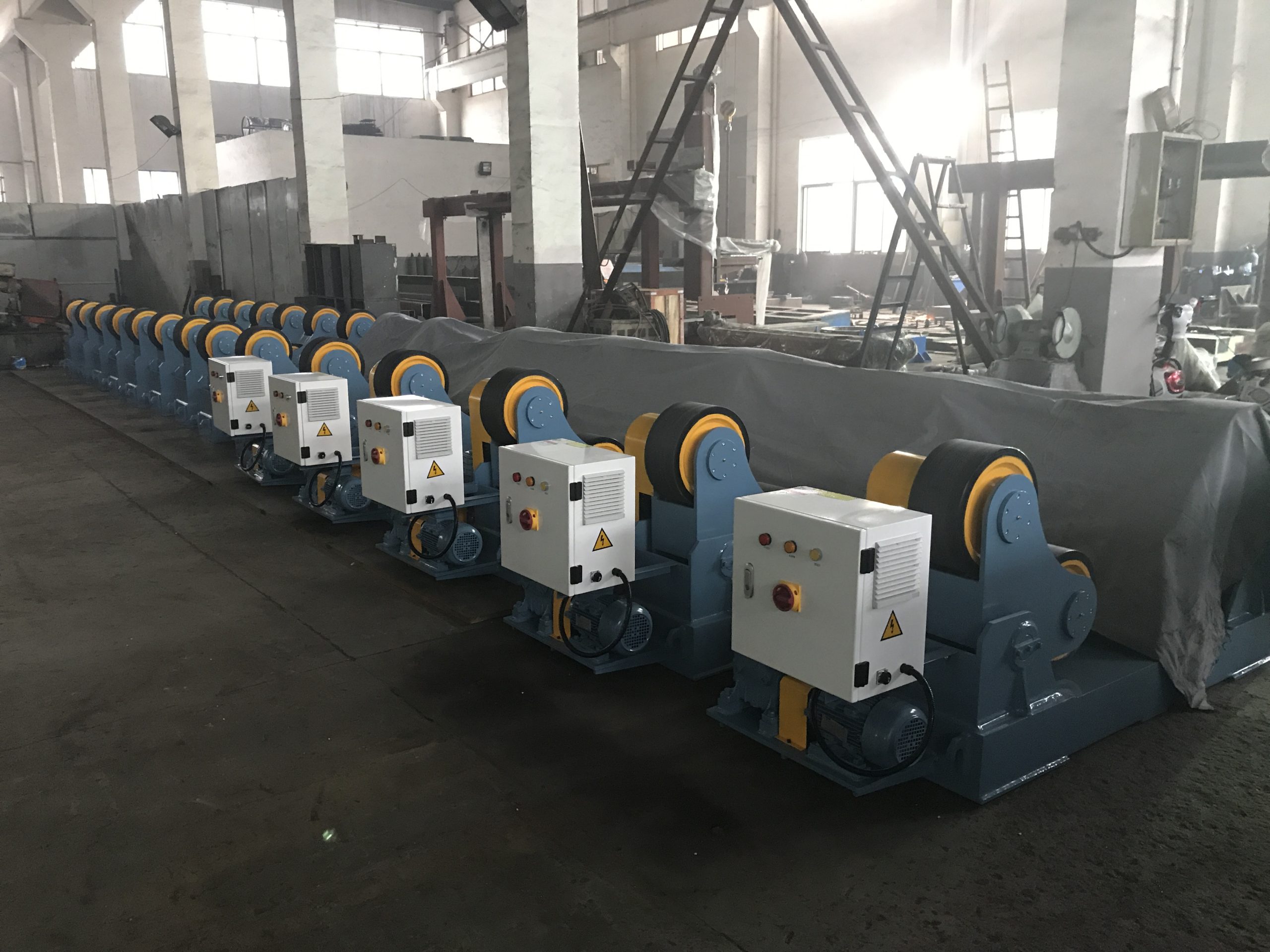

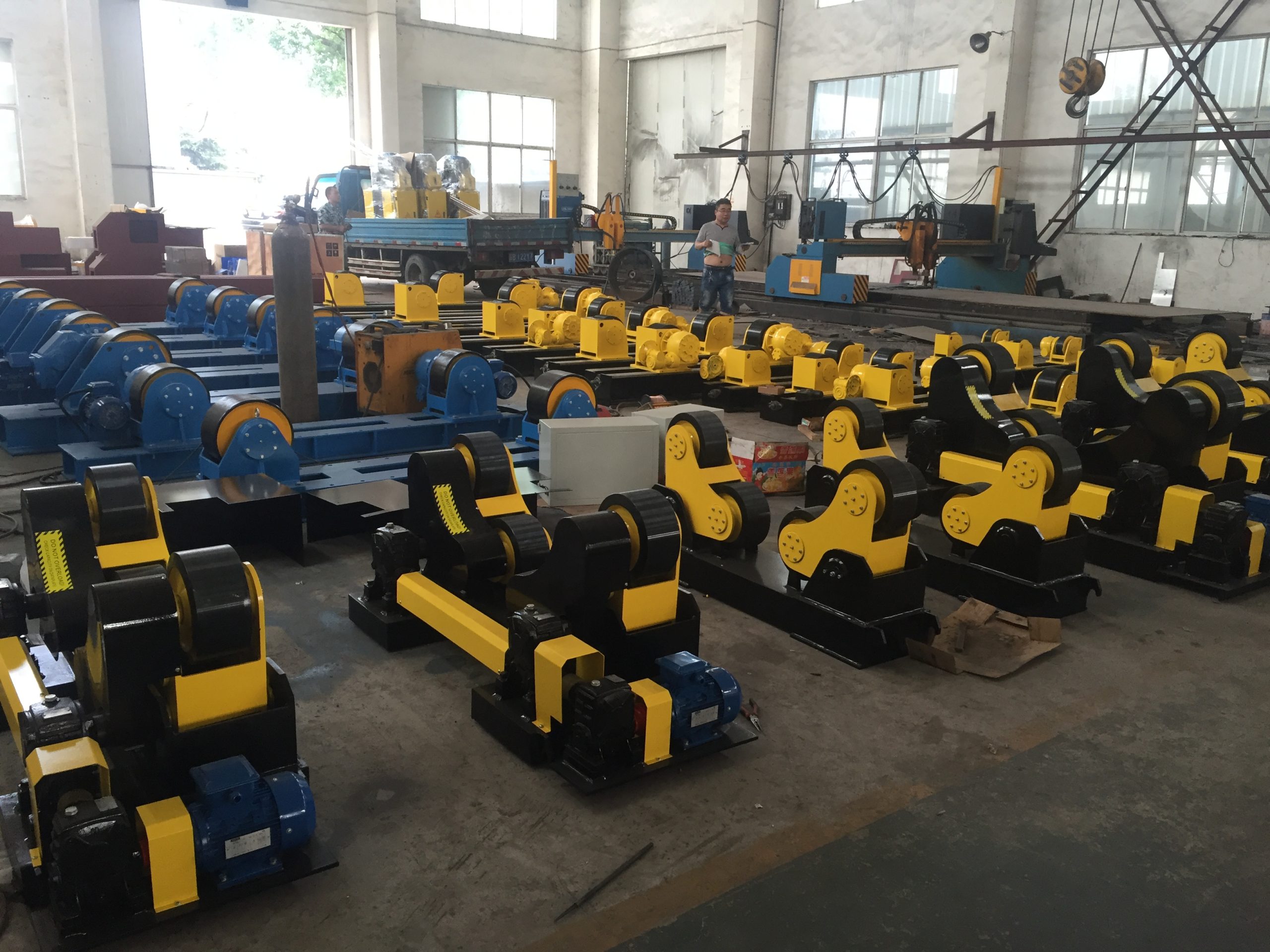

Standard Welding Rotator HGZ-20 Standard Welding Rotator HGZ-20 Standard Welding Rotator HGZ-20

· Trusted design · Reliable Quality
· Renowned parts · Inverter control
· Direct drive system · Motorised travel option
· Build to order custom design · OEM

Wheel introduction

Polyurethane wheels offer exceptional abrasion resistance, versatile processing, wide applicability, and superior resistance to oil, ozone, aging, radiation, and low temperatures. They also provide strong adhesion, excellent sound transmission, biocompatibility, and blood compatibility.

Standard Welding Rotator HGZ-20 Standard Welding Rotator HGZ-20

Motor introduction

Standard Welding Rotator HGZ-20

Standard Welding Rotator HGZ-20

Top quality rotator manufacturer

1.With over 20 years of specialized experience in manufacturing self-aligning rotators.
2.Our products feature a bearing capacity that ranges from 5 tons to 400 tons.
3.We provide CE and ISO certifications, ensuring compliance with stringent sub-regulations. Additionally.
4.We offer a one-year warranty and free wearing parts.
5.Our highly skilled technical team is dedicated to supporting you and your large-scale projects, such as wind turbine welding.

Product certification

Step into the future of welding technology with our cutting-edge solutions.
From automated processes to intuitive controls, our products are at the forefront of innovation, providing you with the tools you need to stay ahead in today’s competitive market!

Standard Welding Rotator HGZ-20

Wuxi ABK Machinery Co.Ltd is a professional manufacturer of welding rotator in China. And our welding rotator mainly includes standard welding rotator, adjustable welding rotator, and special welding rotator. We can also provide our clients around the world with many other products including welding turntable, pile welding machine, wind tower production line, H beam welding line, pipe welding equipment, CNC cutting machine, grinding machine, roll forming machine, plate bending machine, etc. We have obtained ISO and CE certification, and we also offer OEM service.
